OM-244 814 Page 100
. Hardware is common and
not available unless listed.
250 579-A
1
2
3
15
4
8
9
10
5
16
17
6
7
11
14
13
12
6
5
18
13

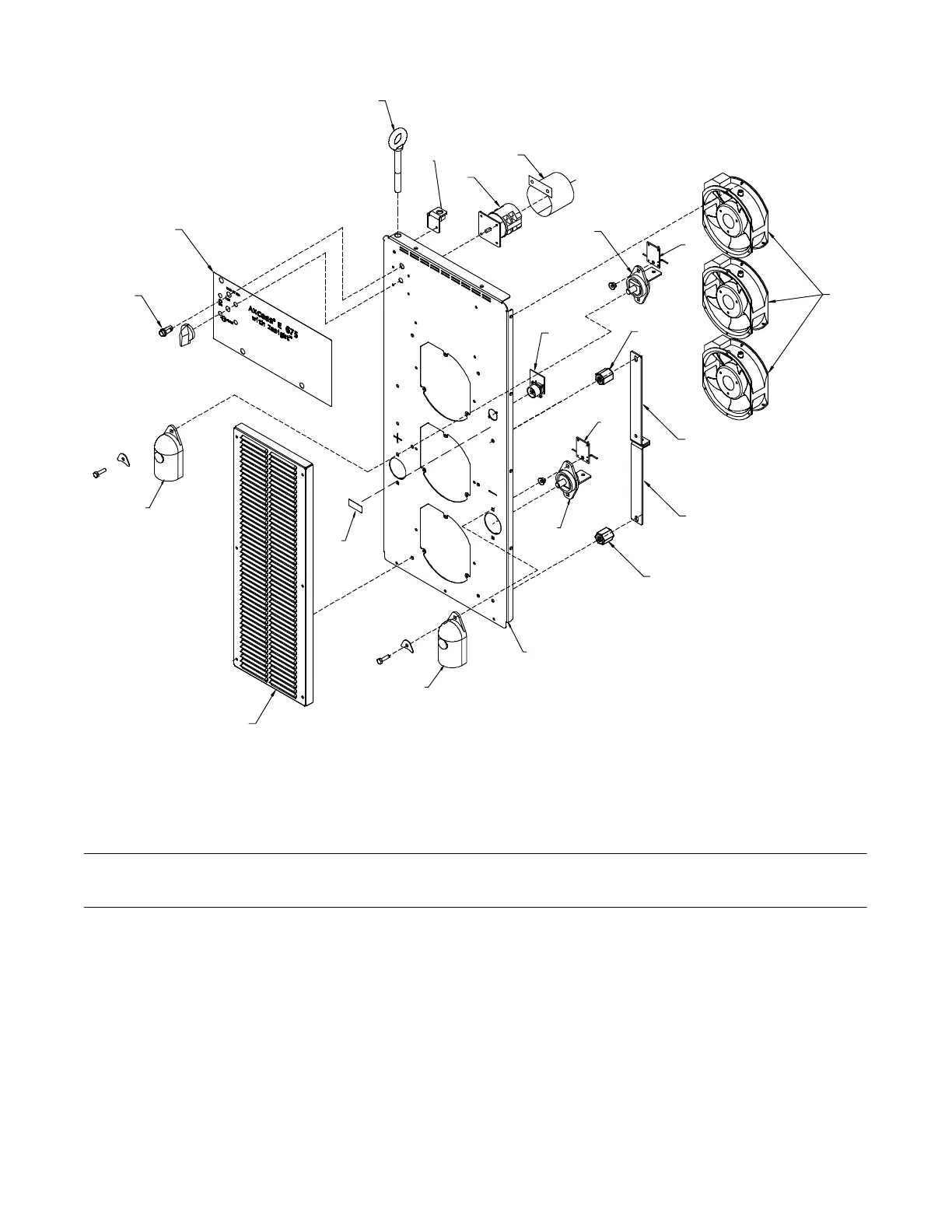

Figure 17-6. Axcess E 675 Front Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 17-6. Axcess E 675 Front Panel Assembly
(Fig 17-1 Item 16)
Quantity
1 S1 207456 Switch, Rotary 2 Posn 1P 40A 600VAC PNLMTG 90Deg 1... ..... ....... ... ...........
2 207895 Insulator,Switch Power 1... ................ ... .........................................
3 FM 196313 Fan, Muffin 115V 50/60 Hz 3000 Rpm 6.378 Mtg Holes 3... ..... ....... ... .............
4 244989 Circuit Card Assy, Vsense Filter 1... ................ ... .................................
5 025248 Stand−off, Insul .250−20 X 1.250 Lg X .437 Thd 2... ................ ... ...................
6 PC15, PC20 244993 Circuit Card Assy, Stud Filter 2... . ... ... ...................................
7 220815 Bus Bar, Output 1... ................ ... ...............................................
8 210864 Bus Bar,Output 1... ................ ... ...............................................
9 210866 Terminal, Pwr Output Black 1... ................ ... .....................................
10 210473 Panel, Front 1... ................ ... ..................................................
*Recommended Spare Parts.
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
