E450 Parts
OM-244 814 Page 87
802 955-A
. Hardware is common and
not available unless listed.
3
4
5
6
7
8
36
33
37
19
20
22
23
26
27
38
31
28
13
29
30
32
34
10
11
15
14
2
9
21
25
24
35
12
7
6
13
1
18
16
17
23
23

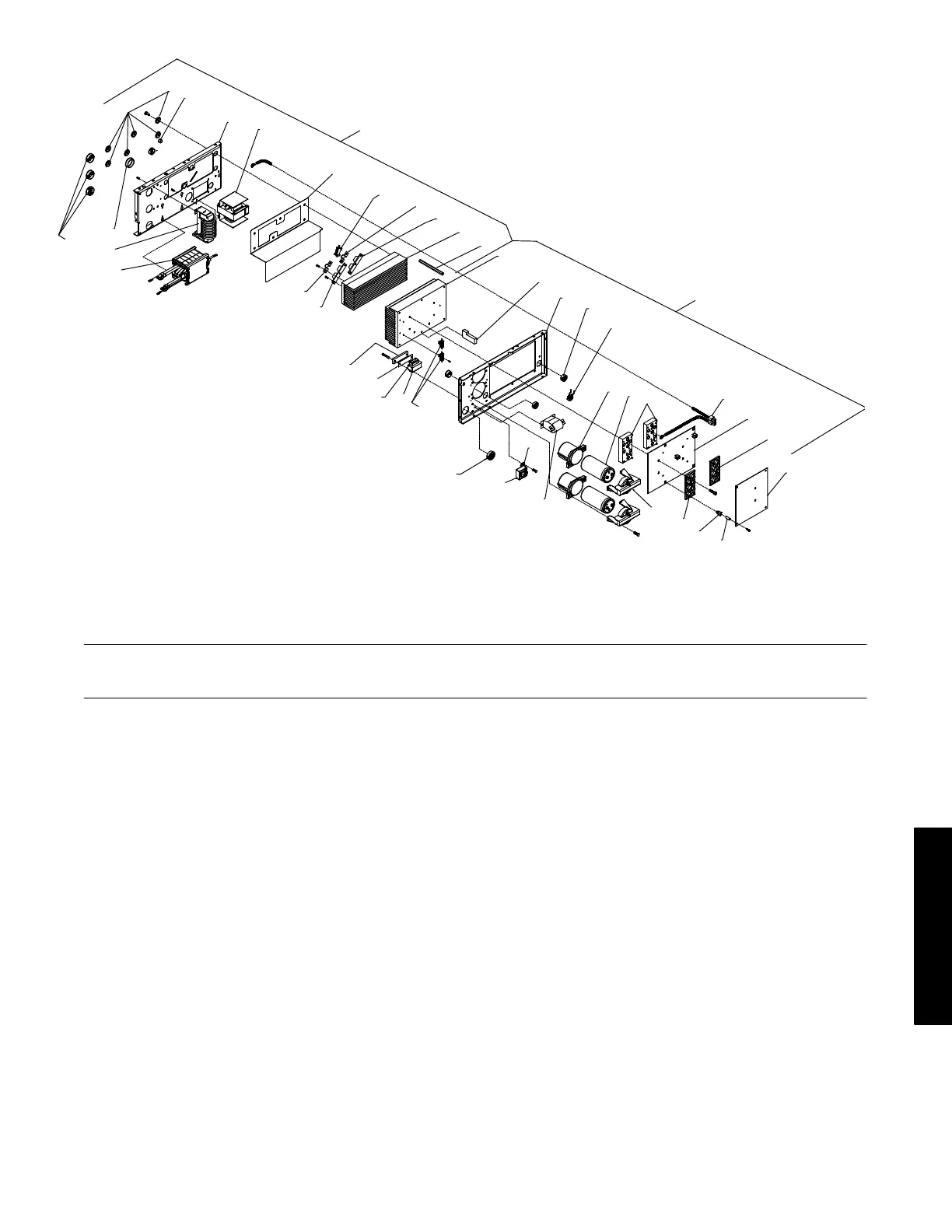

Figure 16-2. Windtunnel Assembly LH And RH
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 16-2. Windtunnel Assembly LH And RH
(Fig 16-1 Item 6)
Quantity
1 214597 Windtunnel, LH w/Components (including). 1... ................ ... .......................
2 196351 Windtunnel, LH 1... ................ .... ..............................................
3 L1 213940 Inductor, Input 1... ..... ....... .... ..............................................
4 214519 Insulator, Heat Sink Rectifier 1... ................ .... ..................................
5 R3, C4 233052 Resistor/Capacitor 1... ... ..... .... ...........................................
6 199840 Bus Bar, Diode 2... ................ .... ..............................................
7 D1, D2 201531 Kit, Diode Power Module 2... ... ..... .... .....................................
8 196347 Heat Sink, Rectifier 1... ................ .... ..........................................
9 196349 Spacer, Windtunnel 3... ................ .... ..........................................
10 T1 203408 Xfmr, HF Litz/Litz 1... ..... ....... .... ............................................
11 Z1 220496 Output Inductor Assy 1... ..... ....... .... ........................................
12 170647 Bushing, Snap−in Nyl 1.312 Id X 1.500 Mtg Hole 2... ................ .... ................
13 179276 Bushing, Snap−in Nyl 1.000 Id X 1.375 Mtg Hole Cent 4... ................ .... ............
14 196355 Insulator, Screw 6... ................ .... .............................................
15 010546 Bushing, Snap−in Nyl .375 Id X .500 Mtg Hole 1... ................ .... ...................
16 242680 Windtunnel, RH w/Components (including) 1... ................ ... .......................
17 196332 Windtunnel, RH 1... ................ .... .............................................
18 030170 Bushing, Snap−in Nyl .750 Id X 1.000 Mtg Hole Cent 2... ................ .... .............
19 196259 Plugs, w/Leads & Current Xfmr (including) 1... ................ .... ......................
*Recommended Spare Parts.
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
