OM-244 814 Page 92
. Hardware is common and
not available unless listed.
245 822-A

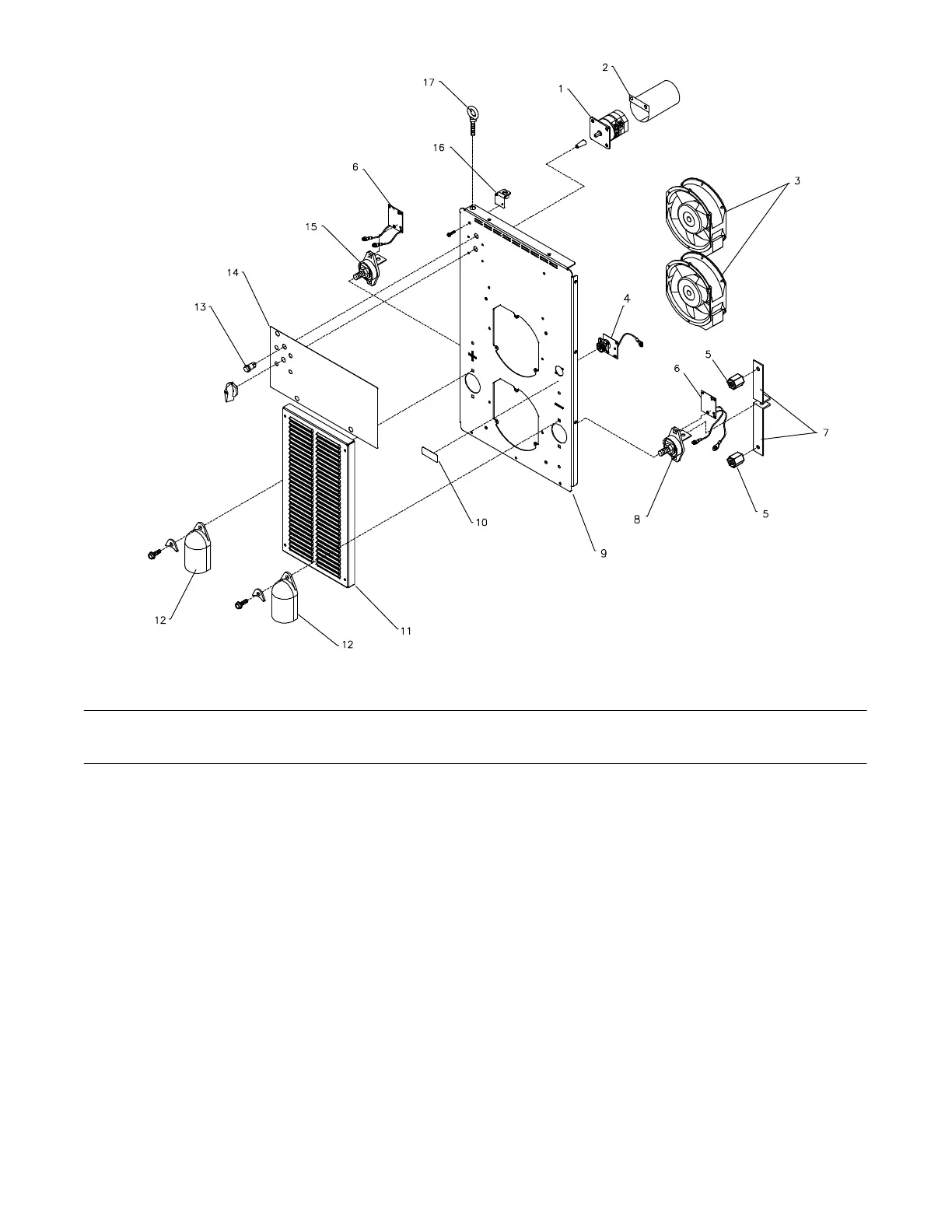

Figure 16-6. Axcess E 450 Front Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 16-6. Axcess E 450 Front Panel Assembly
(Fig 16-1 Item 17)
Quantity
1 S1 207456 Switch, Rotary 2 Posn 1P 40A 600VAC PNLMTG 90Deg 1... ..... ....... ... ...........
2 207895 Insulator,Switch Power 1... ................ ... .........................................
3 FM 196313 Fan, Muffin 115V 50/60 Hz 3000 Rpm 6.378 Mtg Holes 2... ..... ....... ... .............
4 244989 Circuit Card Assy, Vsense Filter 1... ................ ... .................................
5 025248 Stand−off, Insul .250−20 X 1.250 Lg X .437 Thd 2... ................ ... ...................
6 PC15, PC20 244993 Circuit Card Assy, Stud Filter 2... . ... ... ...................................
7 207897 Bus Bar, Output 2... ................ ... ...............................................
8 210866 Terminal, Pwr Output Black 1... ................ ... .....................................
9 247005 Panel, Front 1... ................ ... ..................................................
10 219843 Label, Volt Sense 1... ................ ... .............................................
11 207896 Box, Louver 1... ................ ... ..................................................
12 186621 Boot, Generic 2... ................ ... .................................................
13 PL1 163562 Light, ind white lens 1... ..... ...... ... ...........................................
14 245604 Nameplate, Front 1... ................ ... .............................................
15 210865 Terminal, Pwr Output Red 1... ................ ... ......................................
16 210483 Bracket, lift eye 1... ................ ... ...............................................
17 245352 Lift Eye, 4” 1... ................ ... ...................................................
*Recommended Spare Parts.
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
