. A complete Parts List is available at www.MillerWelds.com
OM-261726 Page 14

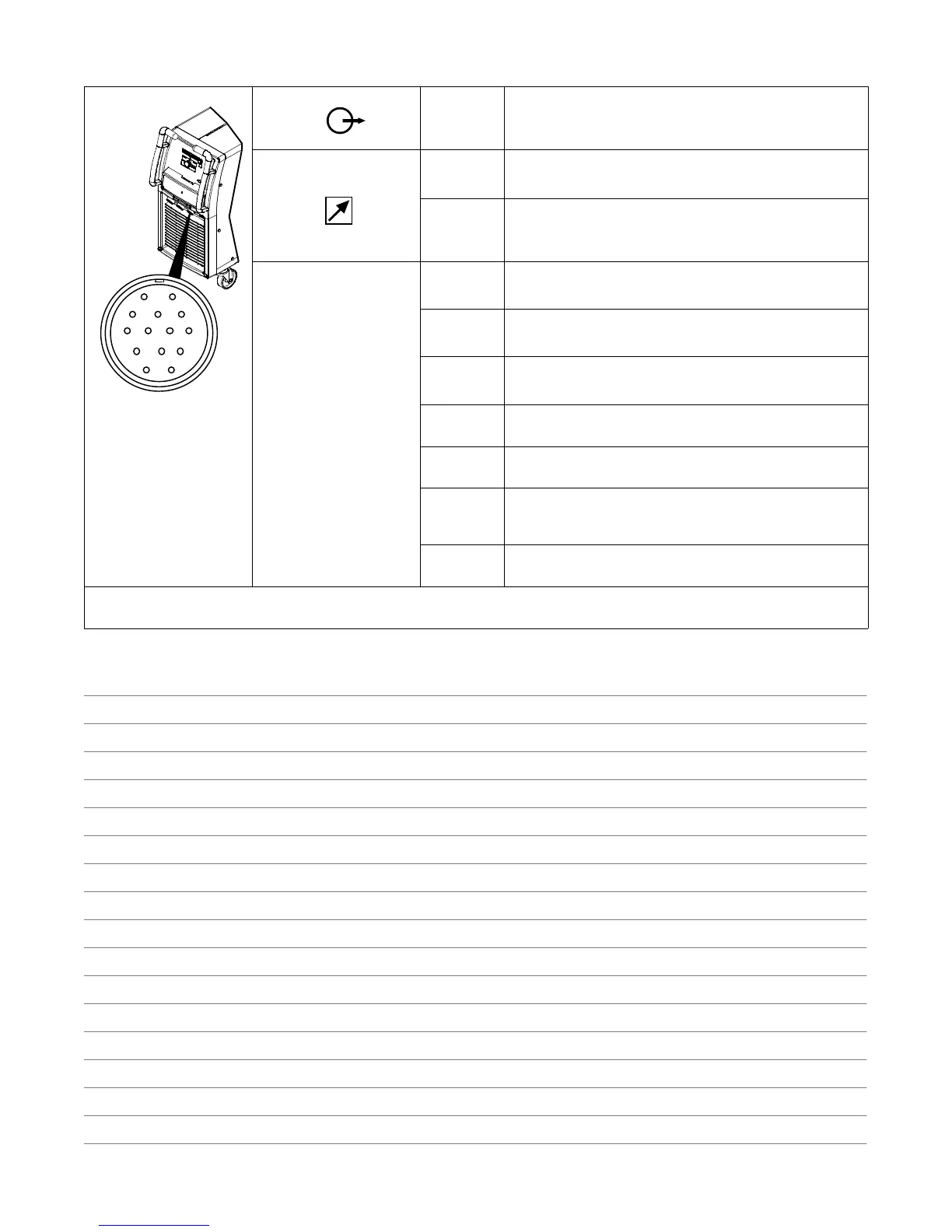

5-2. Remote 14 Receptacle
AJ
B
K
I
C
L
NH
D
M
G
E
F
Socket* Socket Information
A 15 volts DC.
B Contact closure to A completes 15 volts DC contactor control
circuit.
A
C Command reference; 0 to +10 volts DC output to remote control.
D Remote control circuit common.
E 0 to +10 volts DC input command signal from remote control.
G Spool gun motor common.
I Spool gun motor, +3.5 to 15 VDC.
J Spool gun detect, 0 VDC when spool gun is connected, +3.3
VDC with no spool gun attached.
K Chassis common.
*The remaining sockets are not used.
