Miller Syncrowave 210 - Selecting Extension Cord; Connecting 115 Volts Input Power

. A complete Parts List is available at www.MillerWelds.com
OM-261726 Page 18

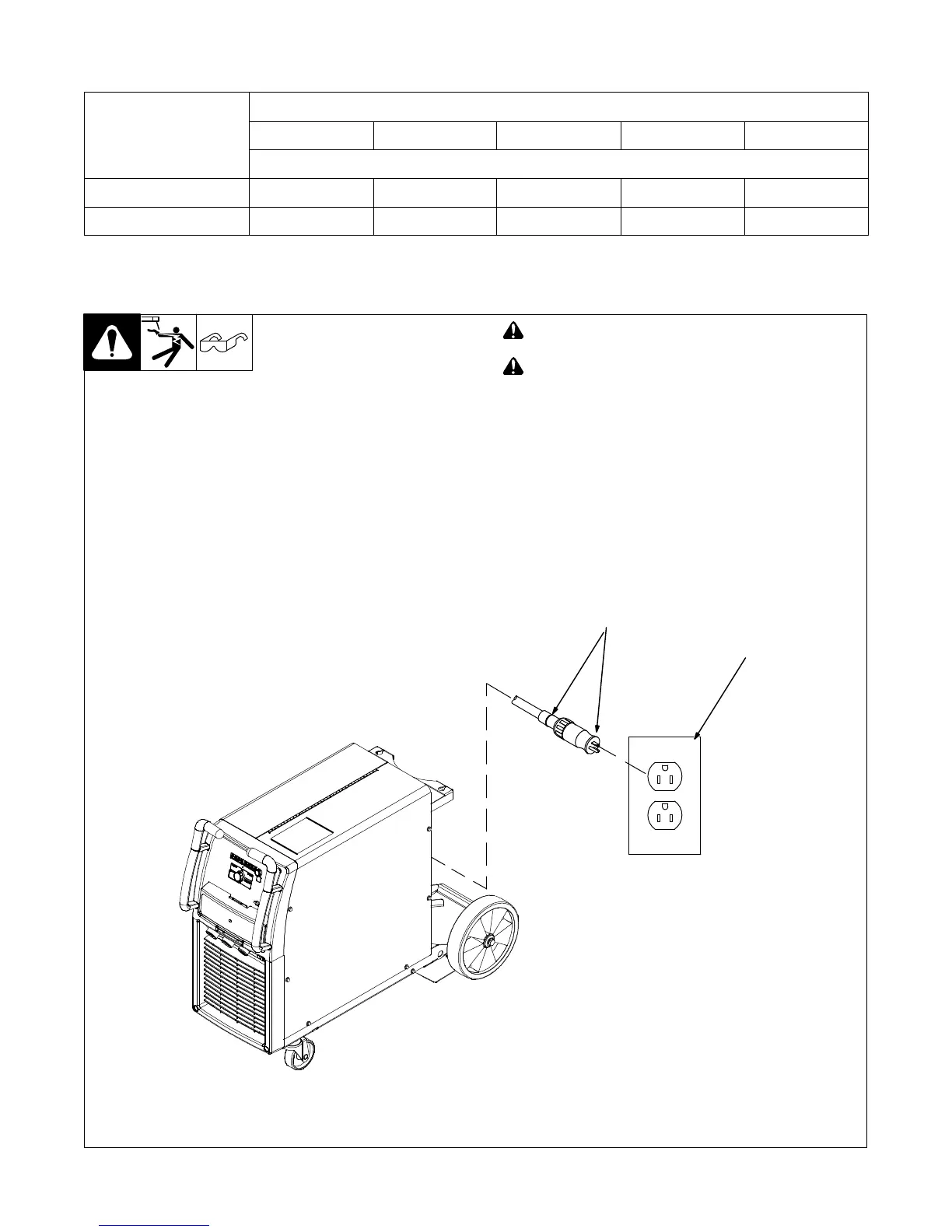

5-9. Selecting Extension Cord (Use Shortest Cord Possible)
Single Phase AC
Input Voltage
Conductor Size − AWG (mm
2
)*
4 (21.2) 6 (13.3) 8 (8.4) 10 (5.3) 12 (3.3)
Maximum Allowable Cord Length in ft (m)
115 160 (49) 107 (33) 71 (22) 47 (14) 29 (9)
230 471 (144) 321 (98) 215 (66) 146 (45) 90 (27)
*Conductor size is based on maximum 3% voltage drop
Ref. 805519-A
5-10. Connecting 115 Volts Input Power
1
! Installation must meet all National and Local Codes
− have only qualified persons make this installation.
! Special installation may be required where gasoline or
volatile liquids are present − see NEC Article 511 or CEC
Section 20.
. The Auto-Line circuitry in this unit automatically links the
power source to the primary voltage being applied, either
115 or 230 VAC.
For 115 volts AC input power, a 15 or 20 ampere individual
branch circuit protected by time-delay fuses or circuit breaker is
required.
1 Multi-Voltage Plug And Power Cord Connector (NEMA
Type 5−15P Plug Shown)
For multi−voltage plug connections, see Section 5-12.
2 Receptacle − NEMA Type 5−15R (Customer Supplied)
2
Input6 2011−03 Ref. 805474-A
