Miller Syncrowave 250 DX - Volt-Ampere Curves

ENGLISH
OM-363 Page 11
194 385-A / 194 384-A
The volt-ampere curves show the
minimum and maximum voltage
and amperage output capabilities of
the welding power source. Curves
of other settings fall between the
curves shown.

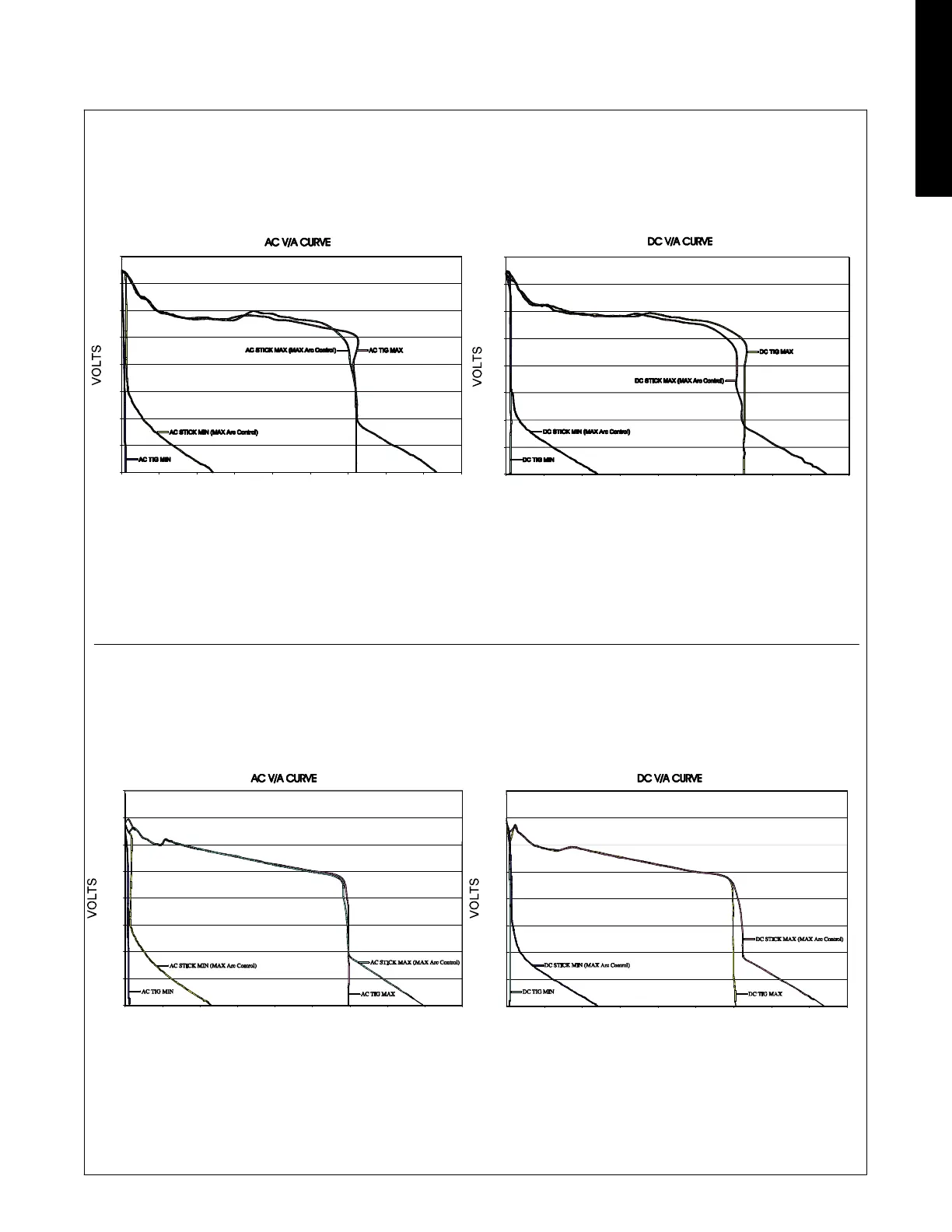

3-7. Volt-Ampere Curves
A. For 250 DX Models
Non CE Models
CE Models
205 631 / 205 632
0 50 100 150 200
AMPS
250 300 350 400 450 0
50 100 150 200
AMPS
250 300 350 400 450
