OM-363 Page 46
4-17. Timer/Cycle Counter
1 Amperage Control
2 Output Control (Contactor)

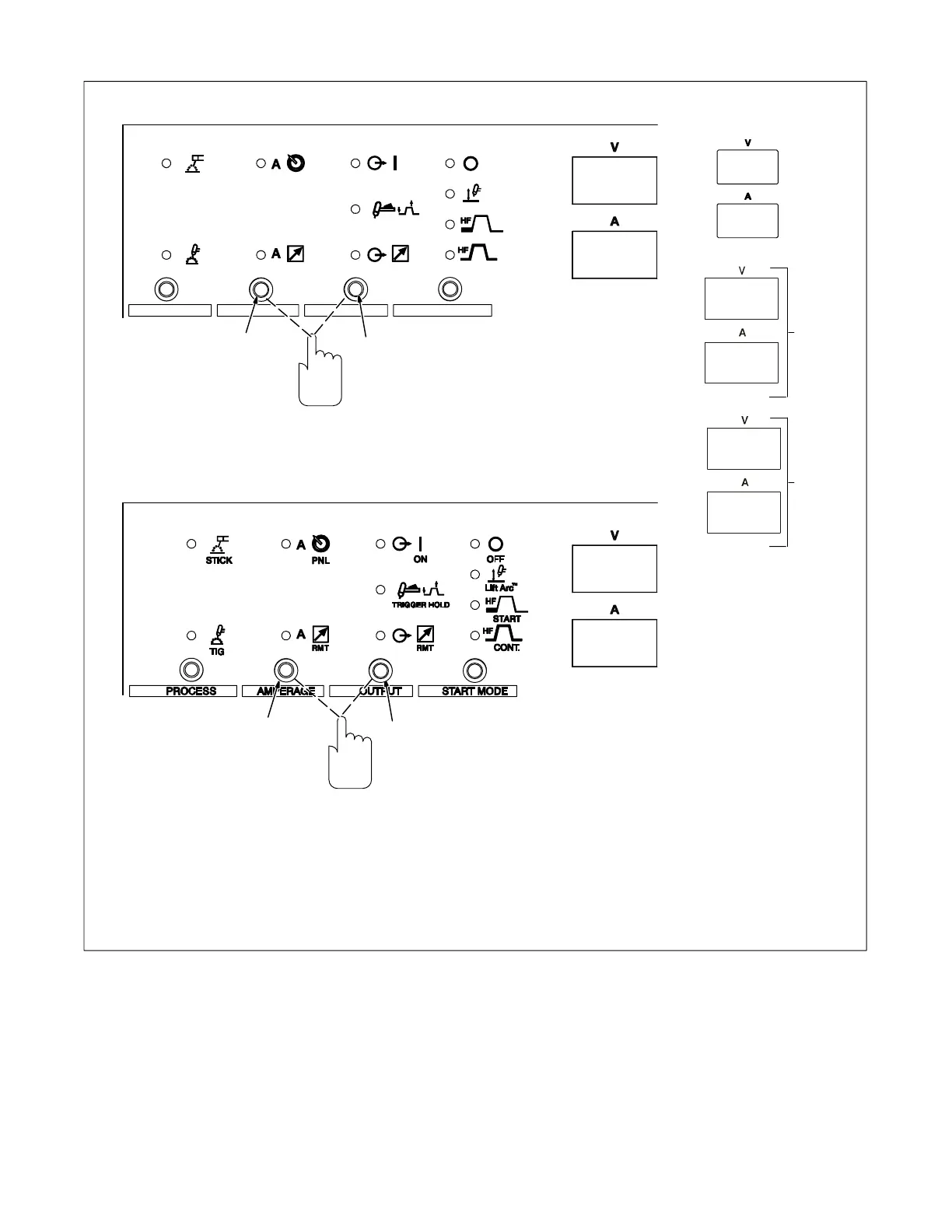

To read timer/cycle counter, hold Amper-
age and Output (contactor) buttons while
turning on power. When machine first
powers up, the displays will show the
software number and revision for the first
seven seconds. It will then show arc time
and cycle count.
3 Timer Display
The hours and minutes are displayed on
the volt and amp meters for the first five
seconds, and are read as 1, 234 hours
and 56 minutes.
4 Cycle Display
The cycles are displayed on the volt and
amp meters for the next five seconds,
and are read as 123, 456 cycles.
1 2 3
4 5 6
1 2 3
4 5 6
3
4
1
2
2
1
(CE Nameplate)
To Next Page
