Milli-Q Millipore - System Cabinet Connections; Port and Cable Identification

14 Milli-Q® Reference System
Cabinet, Continued

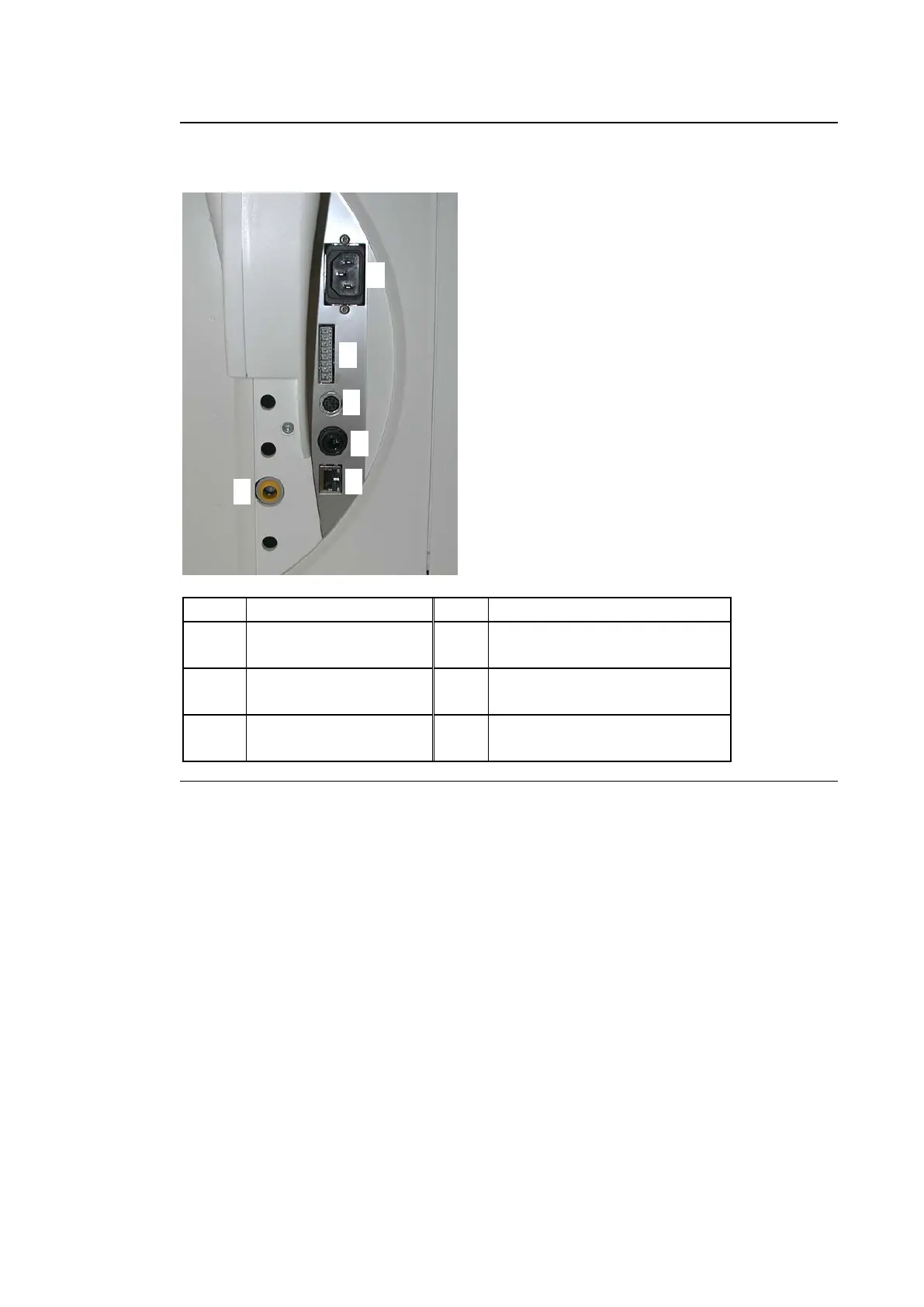

Port and cables
The port and cable connections are explained below.
Item
Description
Item
Description
1
Feedwater port
4
Termination Plug connection
(maximum 5 VDC)
2
Ethernet connection
(maximum 5 VDC)
5
Accessories connection
(maximum 24 VDC)
3
Level Sensor
(maximum 5 VDC)
6
Power Entry connection
(100-240 VAC)
