4-4 CONNECTION EXAMPLES
4 different examples of connection are shown below:
THE 4 DIAGRAMS SHOWN BELOW ARE PROVIDED ONLY AS EXAMPLES. MILLIPORE
SHALL NOT BE RESPONSIBLE FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR ANY
OTHER INDIRECT DAMAGES RESULTING FROM THE CONNECTION OF THE ICW-3000
SYSTEM TO ANY NON-MILLIPORE EQUIPMENT.

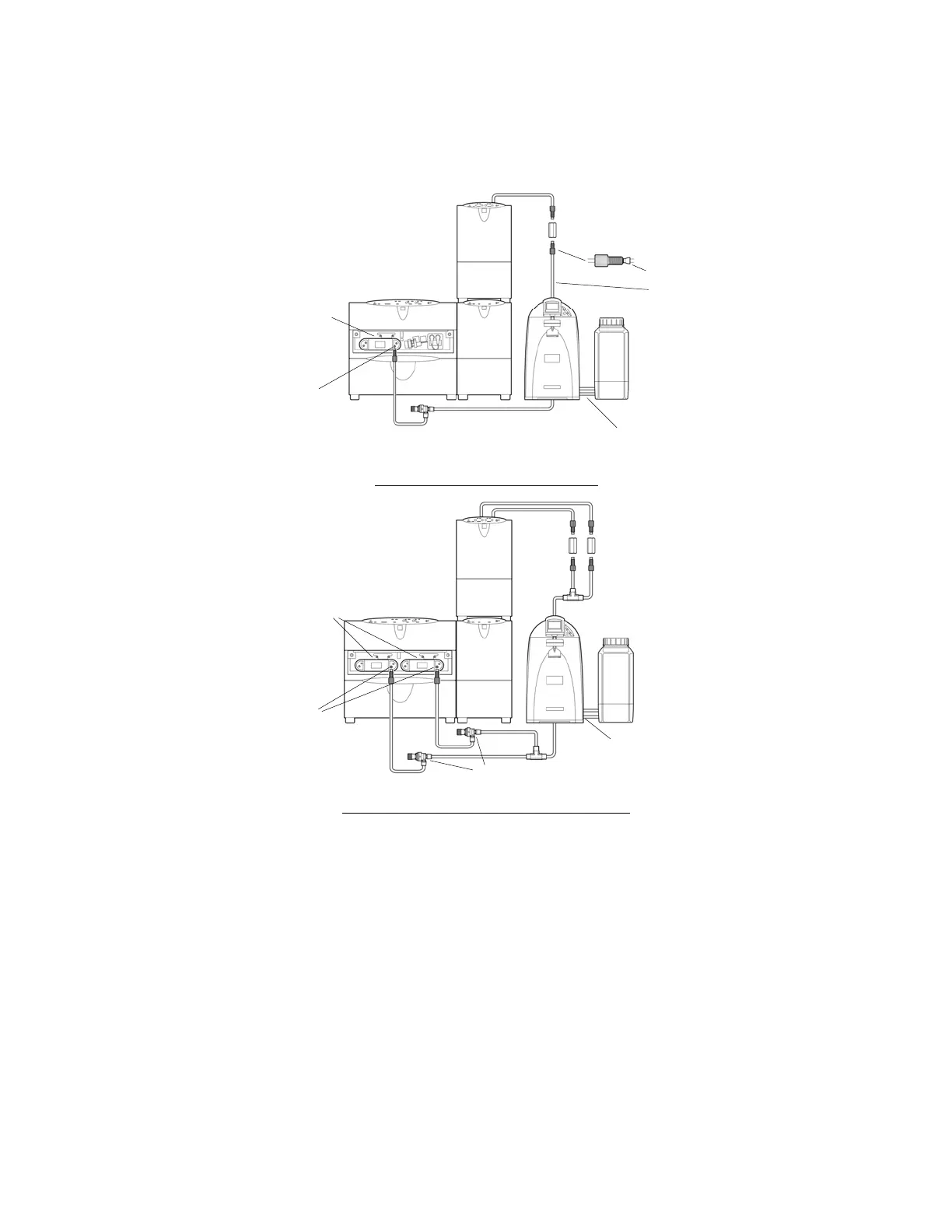

Supply from ICW-3000 to Dionex ICS-3000
Supply from ICW-3000 to two-channel Dionex ICS-3000
Pure water tank
Dionex ICS-3000
6 mm tubing, 8 mm tubing
ICW-3000
Flow regulator valve
Regen IN
Suppressor
Union 1/4-28
Flangeless ferrule
Flangeless nut
1/8” Teflon tubing
From eluent line on the back o
f
ICW-3000
1/8” Teflon tubing
From suppressor line o
n
the back of ICW-3000
Pure water tank
Dionex ICS-3000
6 mm tubing, 8 mm tubing
ICW-3000
Flow regulator
valve
Regen IN
Suppressor
Union 1/4-28
Flangeless ferrule
Flangeless nut
1/8” Teflon tubing
From eluent line on the back o
f
ICW-3000
1/8” Teflon tubing
From suppressor line on the back o
f
ICW-3000
Tee
Tee
