INSTALLATION
- 11 -

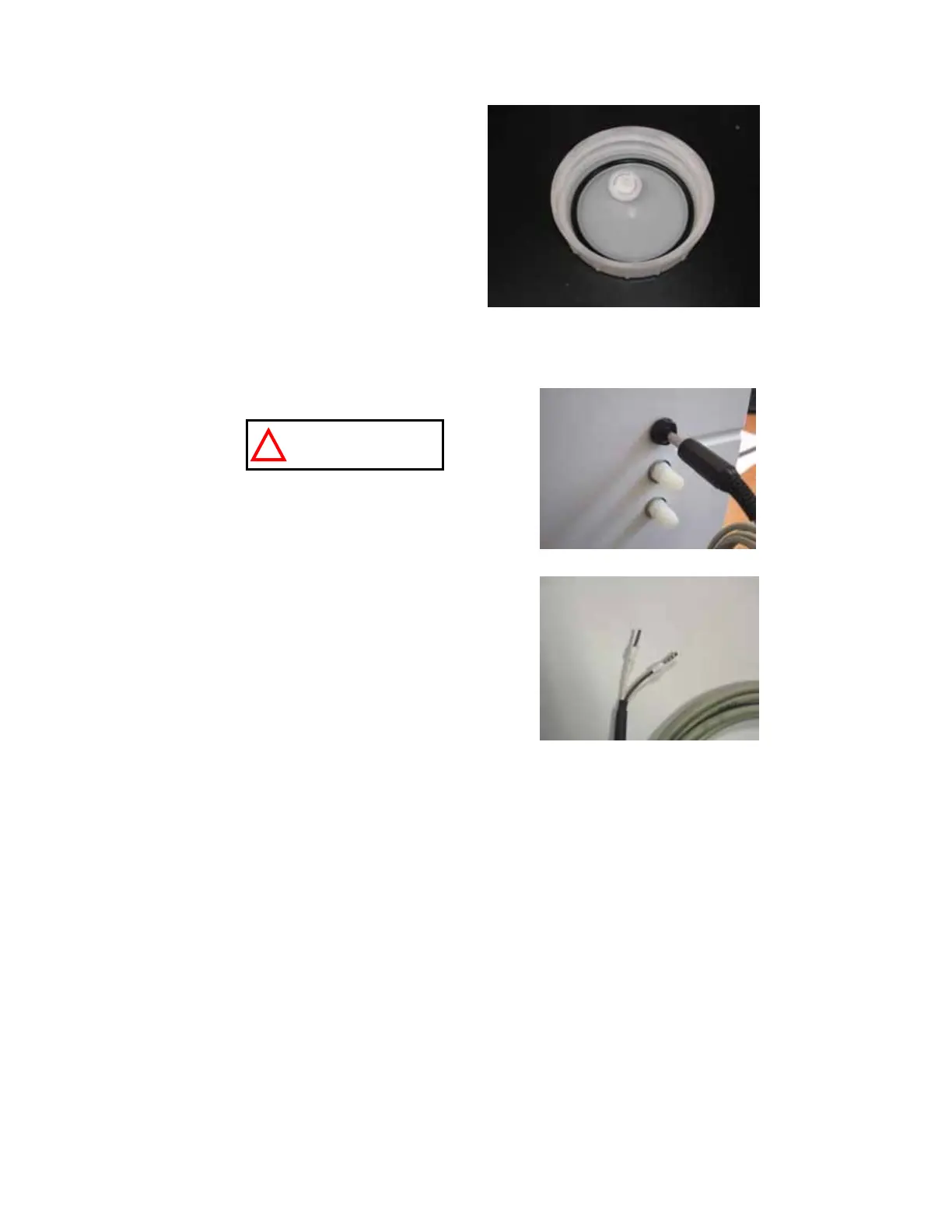

4-5 INSTALLATION OF AIR VENT FILTER
Insert the Vent Filter onto the tank lid.
(A).
Screw the lid back onto the Reservoir.
4-6 SIGNAL CABLE CONNECTION
Make sure that:
NO ion chromatography system signals are
issued during installation,
Power off the ICW-3000 System.
Connect the male jack connector of the
accessory cable on the back of the ICW-3000
System (A).
Do not connect wires (B) to the Ion
Chromatography System
The connection of both wires to the terminal board of
the Ion Chromatography System (B) must be done by
a DIONEX representative. The male jack connector
must be connected to an ON/OFF switch. A 0-5VDC
signal will transit through the cable.
MILLIPORE SHALL NOT BE RESPONSIBLE
FOR CONSEQUENTIAL, INCIDENTAL,
SPECIAL OR ANY OTHER INDIRECT
DAMAGES RESULTING FROM THE CONNECTION OF THE ICW-3000 SYSTEM TO ANY
NON-MILLIPORE EQUIPMENT.
A
A
B
Caution
