Page 68 Accumass BW500 PL-565
Parameters

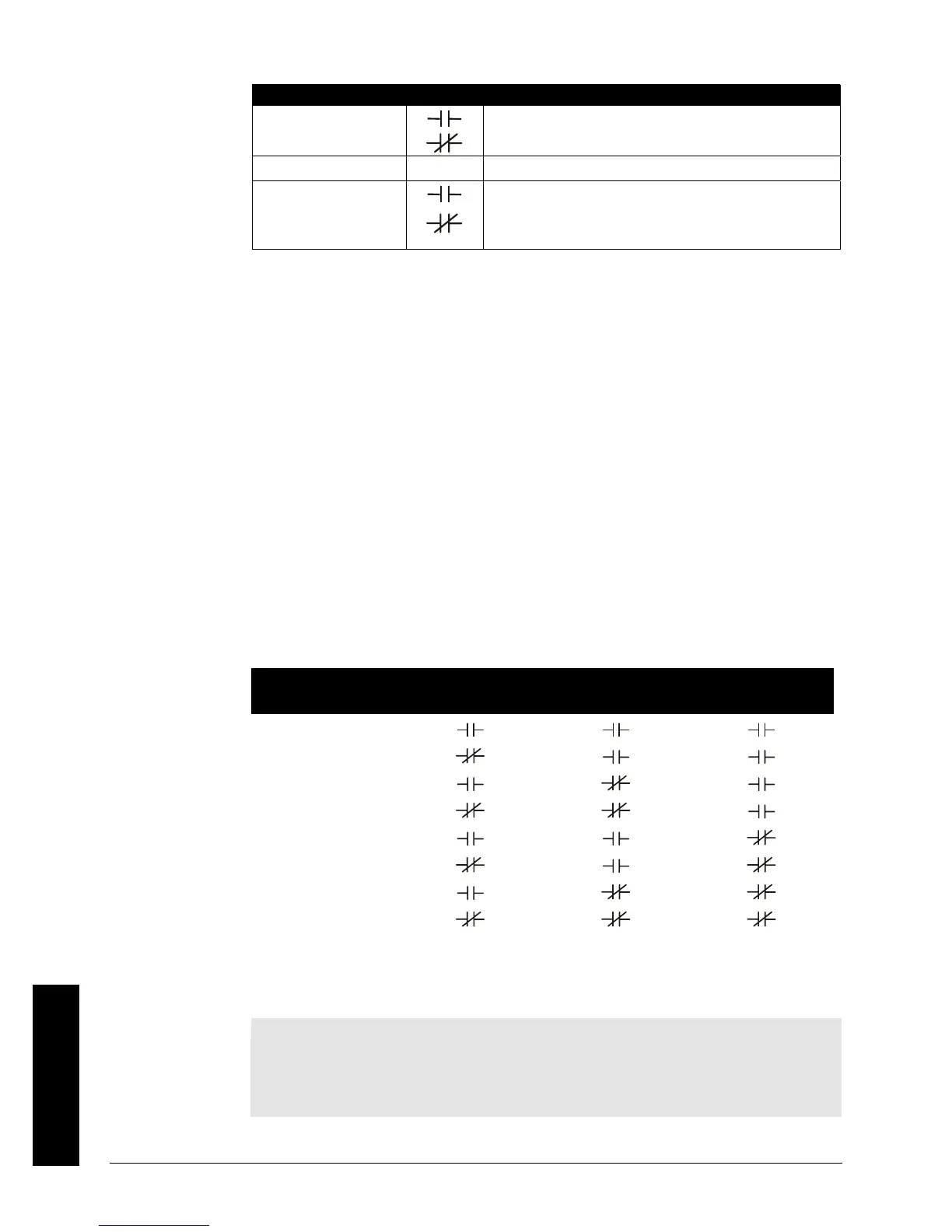

Function Symbol Description
PID mode
auto
manual
external alarm the input contact status is sensed off
remote
communication
write
keypad / Dolphin Plus write (program) enabled
SmartLinx
®
/ remote device write (program)
enabled
Entry:
0 = off
f
1 = alternate display
2 = reset totalizer 1
3 = zero
4 = span
5 = print
6 = multispan selection*
7 = reserved
8 = reset batch
9 = PID freeze
10 = PID setpoint source
11 = PID mode
12 = external alarm
13 = remote communication write
*If the BW500 is programmed for multispan operation, the auxiliary input contact
state determines the multispan number (equivalent to P365). Input 1 is reserved for
multispan 1 and 2 selection. Input 2 is reserved for multispan 3 and 4 selection. Input
3 is reserved for multispan 5 to 8 selection.
multispan
selection
auxiliary input 1 auxiliary input 2 auxiliary input 3
1
2
3
4
5
6
7
8
If an attempt is made to select a multispan that has not been zero and span
calibrated, the selection request is ignored.
Notes:
• When performing a remote span, it will first perform a zero, then it will ask you
to set up span test. Once loading is withing ±2% of the design test weight, it will
perform the span.
• For the print command to work, the BW500 must be in Run mode.
