Parameters
P255 mA Input Function
Assigns the mA input function for the input selected, inputs 1 to 2 (P250 - 01 to – 02)
entry:
0 = off
f
1 = PID setpoint
2 = PID process variable
P261 4 mA Input Trim
Trims the 4 mA input level for the input selected, inputs 1 to 2 (P250 - 01 to – 02).
The trim adjusts the input to agree with an external 4 mA source.
Follow the BW500 on line instructions to trim the input
P262 20 mA Input Trim
Trims the 20 mA input level for the input selected, inputs 1 to 2 (P250 - 01 to – 02).
The trim adjust the input to agree with an external 20 mA source.
Follow the BW500 on line instructions to trim the input
P270 Auxiliary Input Function
Selects the auxiliary input function for the input selected; inputs 1 to 5 (P270 - 01 to –
13).

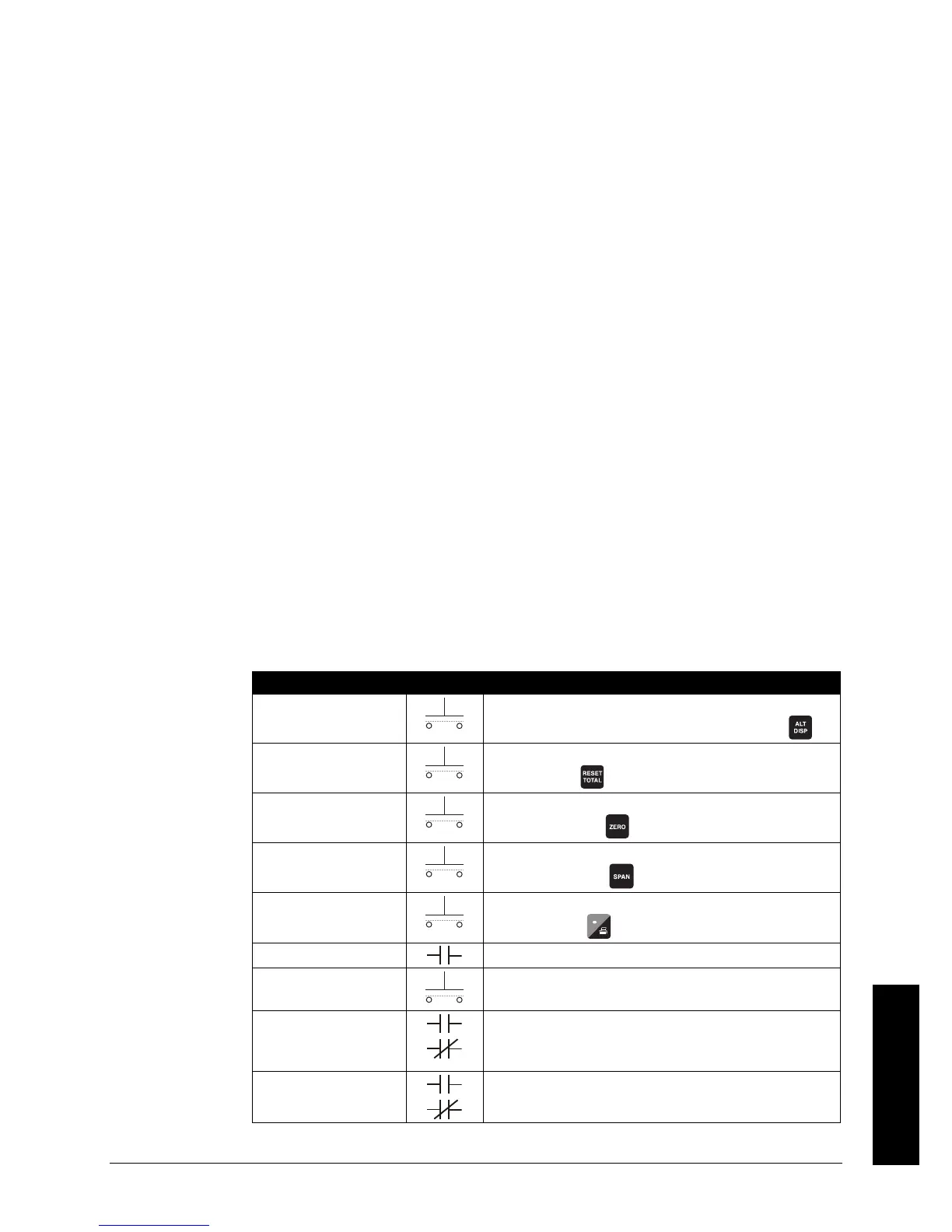

Function Symbol Description
alternate display:
momentary closure of the input contact causes
the run display to scroll to the next display.
reset totalizer 1:
momentary closure of the input contact resets
the totalizer.
zero:
momentary closure of the input contact initiates a
zero calibration. .
span:
momentary closure of the input contact initiates a
span calibration.
.
print:
momentary closure of the input contact sends a
print request. .
multispan selection: contact states selects the multispan (P365)*.
reset batch
momentary closure of the input contact resets
the batch totalizer to zero
PID freeze
off
freeze
closure suspends PID function in the
auto mode and holds output at last
value
PID setpoint source
remote
local
