- 2.15 -
Switching the direction of winding of the medium
The take-up device is mounted with a switch that specifies the direction in which a medium is
wound.
FORWARD : The take-up device winds the medium
with its plotting face faced out.
OFF : The take-up device will not wind the
medium.
REVERSE : The take-up device winds the medium
with its plotting face faced in.

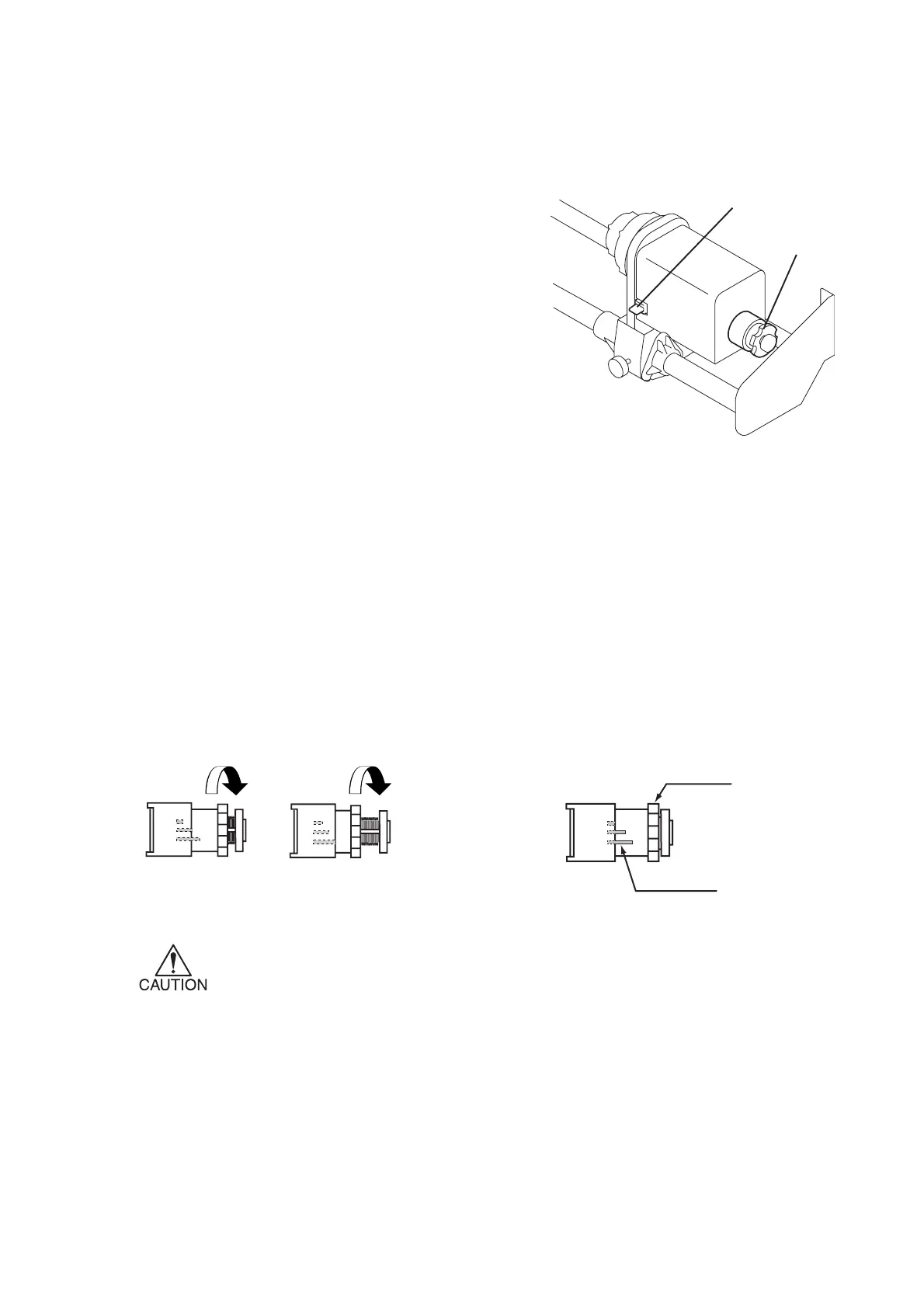

Setting the torque limiter
There is torque limiter adjustment mechanism in take-up device.
Strength of take-up is possible to be changed by adjusting the torque limiter.
( When shipping, it’s set at the strongest.)
When using this media and tension is too strong, weaken the adjustment for the torque limiter.
• Clockwise : It becomes strong • Anti-clockwise : It becomes weak
Medium to be used : The thick media, such as Tarpaulin. Medium to be used : A light medium
• If the torque limiter on the take-up device side is adjusted weaker than the
roll holder side, a roll paper fails to be sent smoothly.
In case adjustment of the torque limiter is too strong, weaken the adjustment
for the torque limiter.
(50% of maximum
Torque Limiter Mark)
(100% of maximum
Torque Limiter Mark)
Adjustment nut
Torque Limiter mark
Switch
Torque limiter
