17 - 10 BeneVision N Series Patient Monitor Operator’s Manual
• If the flotation/thermodilution catheter drifts into the wedge position without inflation of the
balloon, the PA waveform assumes a wedged appearance. Take appropriate action, in accord with
standard procedures, to correct the situation.
NOTE
• The PA alarm is turned off automatically when the monitor enters the PAWP screen.
17.7.4 Setting the Waveforms of the PAWP Screen
On the PAWP screen, select Setup to enter the PAWP Setup menu. In the PAWP Setup menu, you can make the
following settings:
■ Select Reference Waveform 1 to set an ECG lead wave as the first reference wave.
■ Select Reference Waveform 2 to set a respiration wave as the second reference wave.
■ Select Speed to set a sweep speed for the displayed waveforms on the PAWP screen.
■ Select Scale to set the size of the PA waveform on the PAWP screen.
17.7.5 Performing Hemodynamic Calculation
On the PAWP screen, select Hemo Calcs to enter the Hemo Calcs menu. For more information, see
35.4Hemodynamic Calculations.
17.8 Connecting a Camino Device
The IBP module can interface with the Camino multi-parameter monitor (Model: MPM1) to measure intracranial
pressure (ICP).

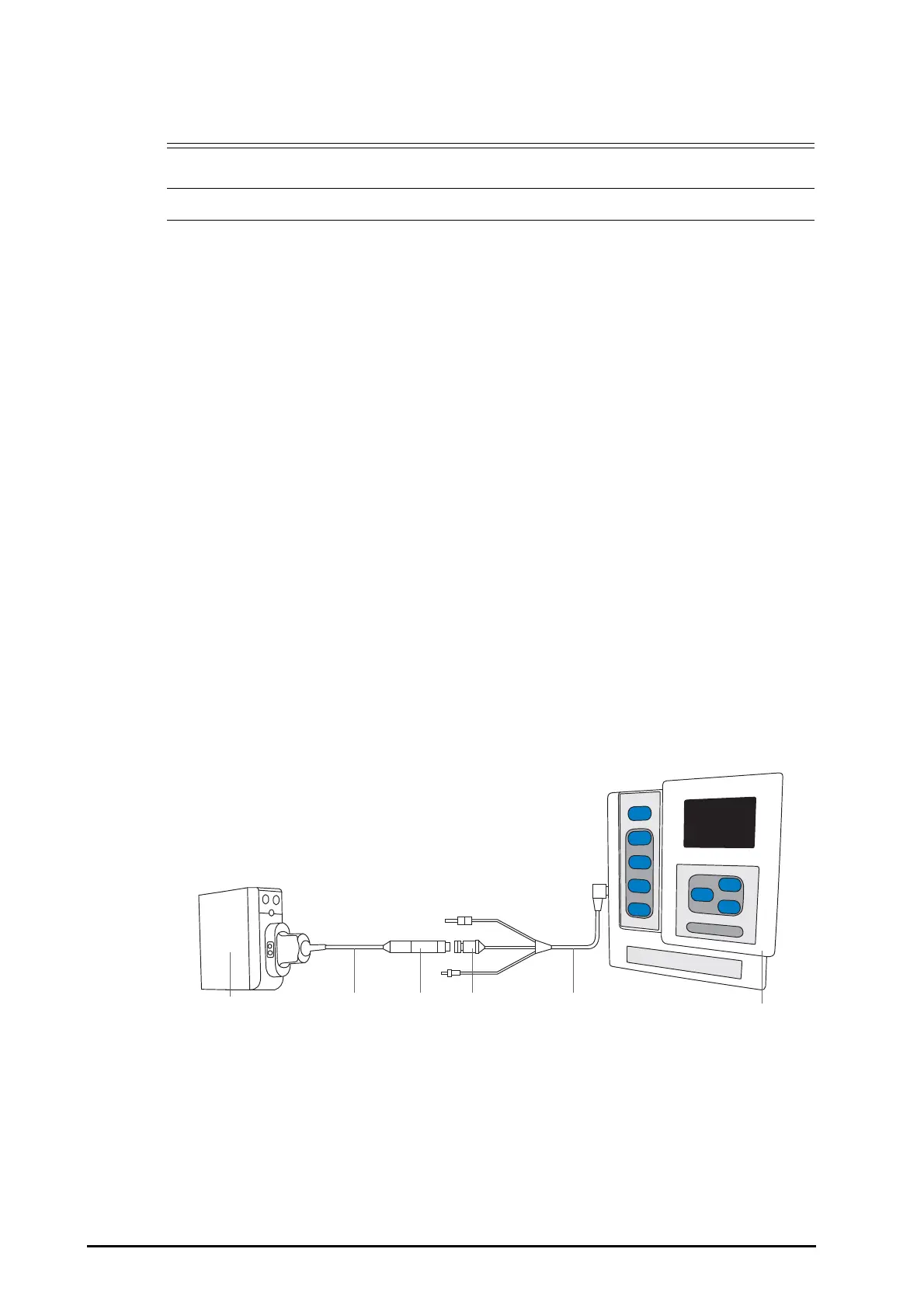

To connect the Camino, follow this procedure:
1. Plug the IBP module into the module rack.
2. Connect the Camino ICP cable to the IBP module.
3. Connect the ICP connector to the ICP adapter.
4. Connect the Camino cable to the Camino monitor.
(1) IBP module (2) Camino ICP cable
(3) ICP adapter (4) ICP connector
(5) Camino cable (6) Camino monitor
(1)
(2)
(3)
(4) (5)
(6)
