Adjustments 7-1
7 Adjustments
7.1 Monitor Adjustment
7.1.1 Position Adjustment
Gently hold the bottom edge of the monitor when adjusting its position.

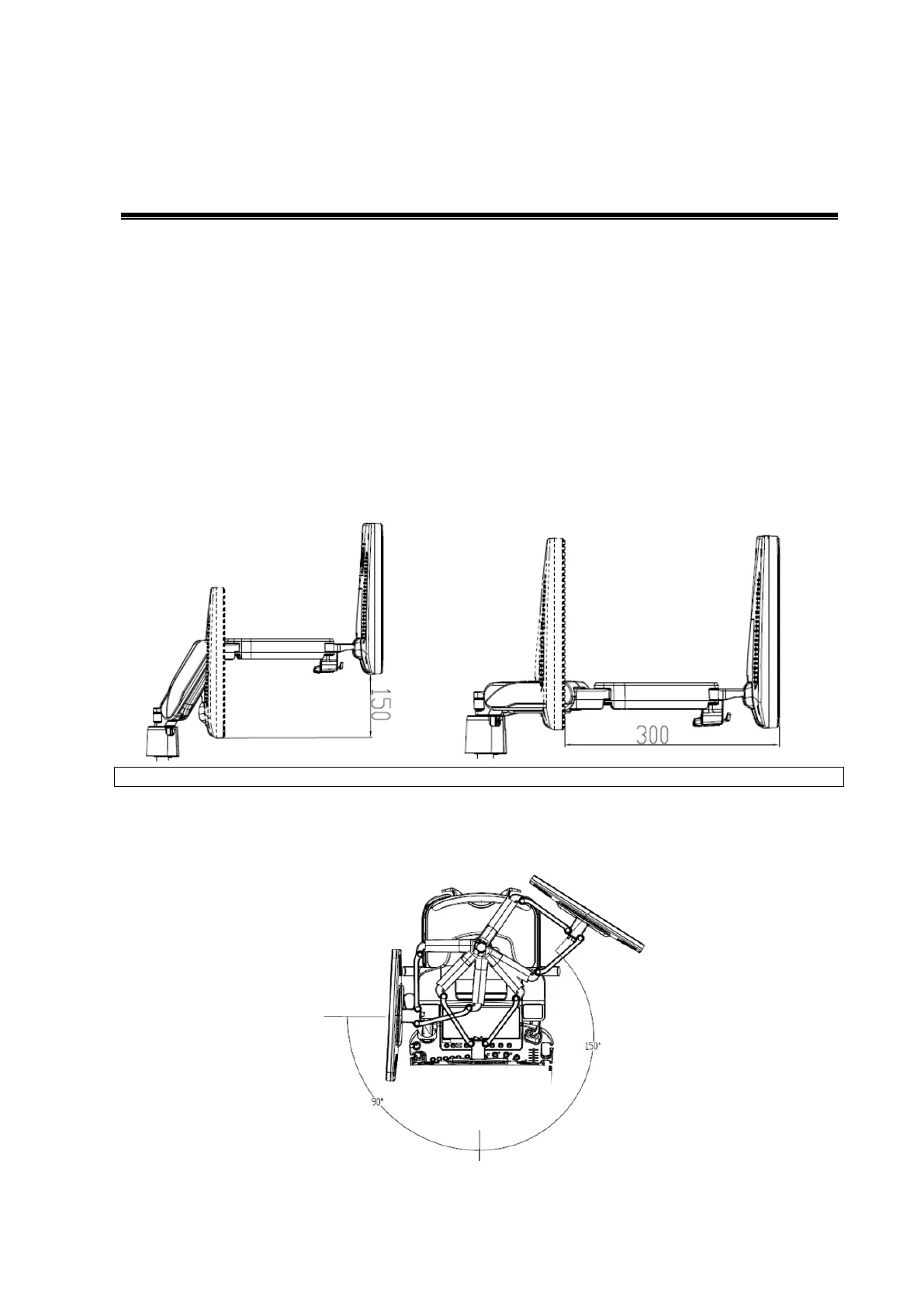

 Height adjustment
Move the monitor support arm up or down to adjust the height, back and forth to adjust the
displacement.
NOTE:
Take care not to trap your hands when adjusting the monitor up and down.
 Rotate the monitor
The monitor can be rotated ±90° along with the supporting arm, or the supporting arm can be
fixed and the monitor can be rotated ±90° alone.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
