Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-33

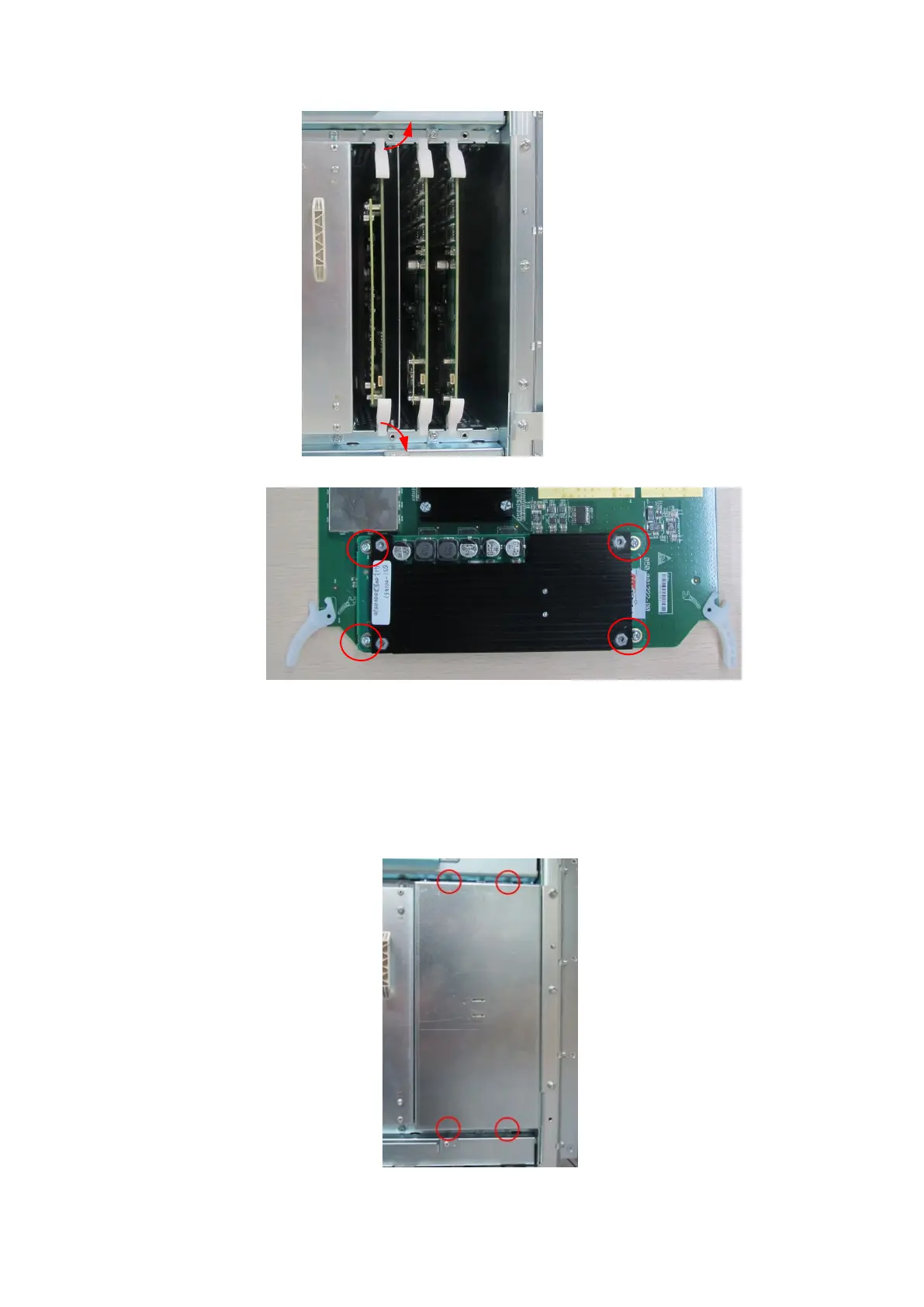

4. Unscrew four M3 X 8 screws, and remove the material package of 4D module.
9.3.20 The Material Package of CW Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.
2. Unscrew four M4 X 8 screws to remove the metal cover.
