Mindray DC-70 Exp User Manual

9-44 Structure and Assembly/Disassembly
9.3.27 Power Input Assembly
1. Follow steps 1-6 in Chapter 9.3.8 to remove the electronic assembly.

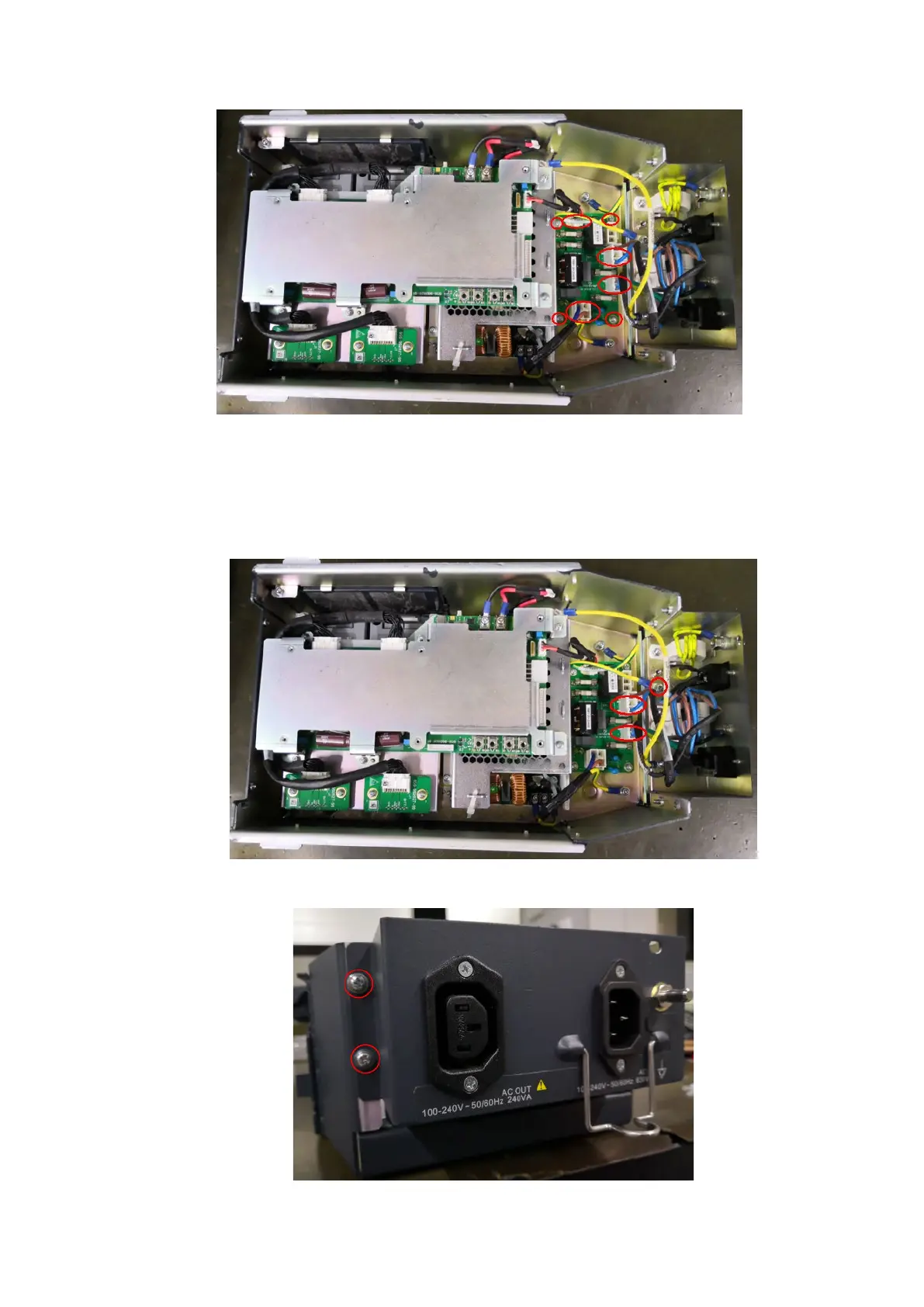

2. Unscrew the M4 X 8 screw and disconnect the two connecting plugs as shown in the figure
below.
3. Unscrew four M4 X 8 screws (two of the screws are in the opposite side, and not shown in the
figure).

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
