Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-43
4. Unscrew the five M4 X 8 screws used to fix cables.

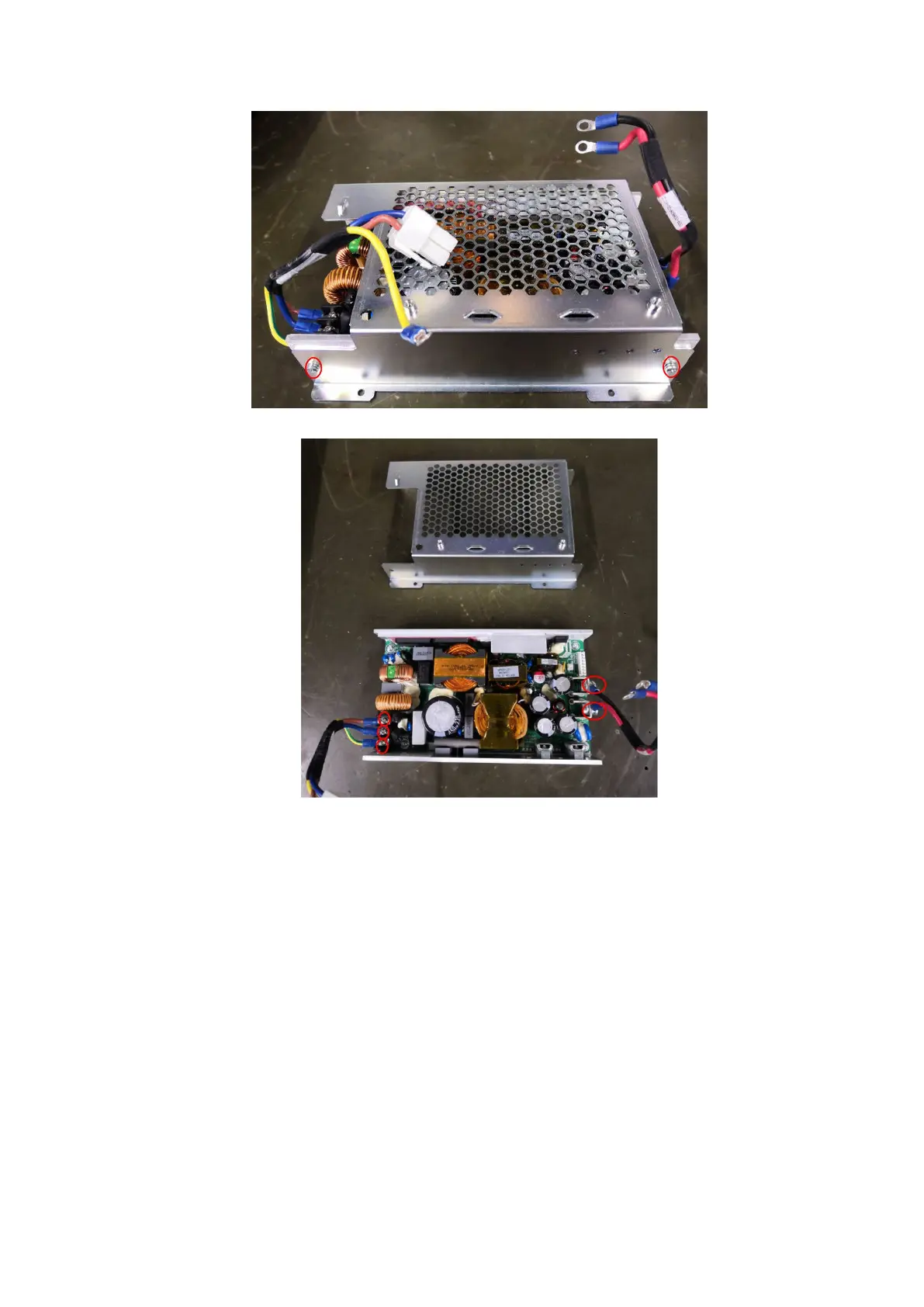

9.3.26 AC Connecting Board
1. Follow steps 1-6 in Chapter 9.3.8 to remove the electronic assembly (including power input
assembly).
2. Unscrew four M3 X 6 screws, disconnect four connecting plugs, and then remove AC
connecting board.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
