Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-21

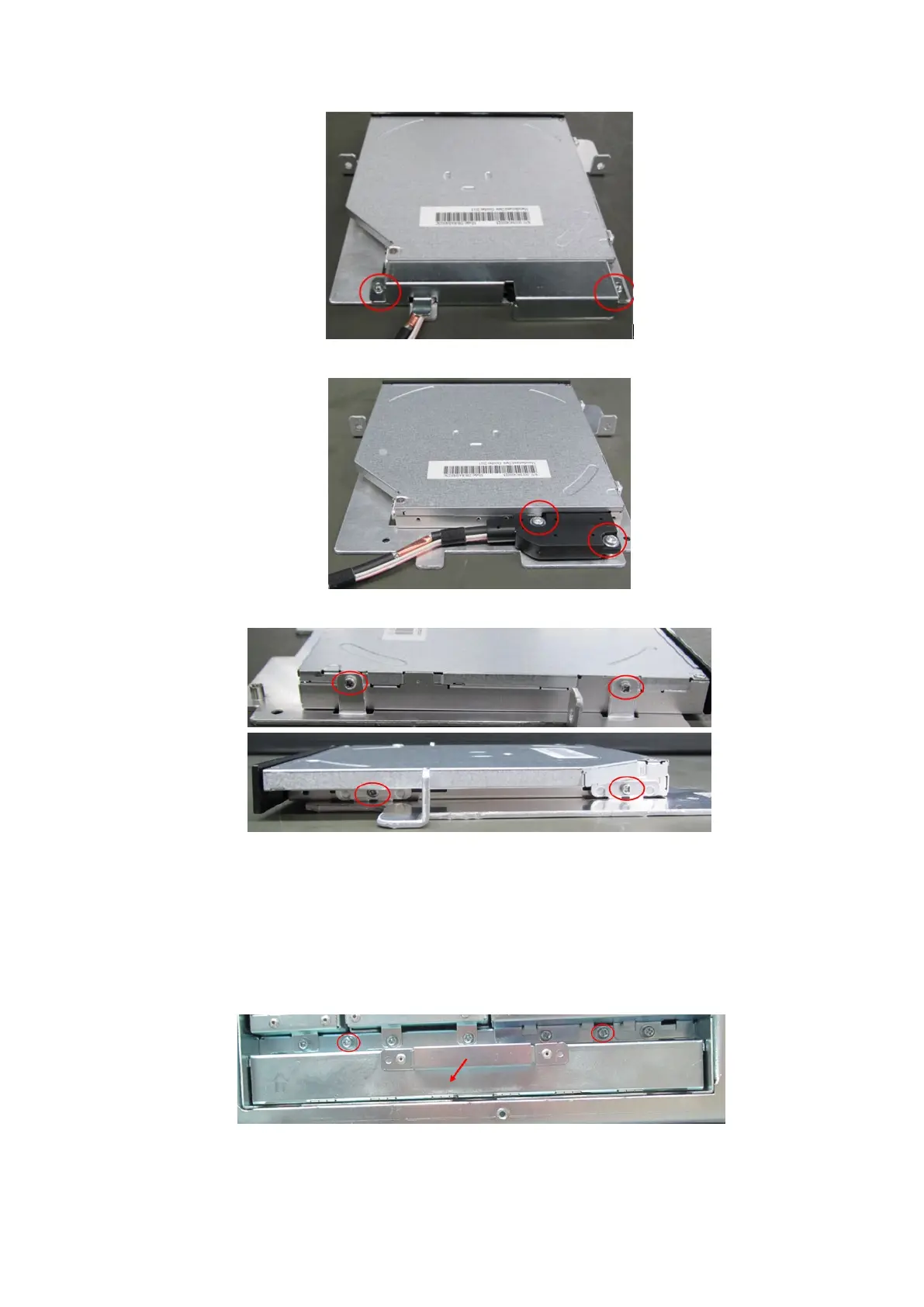

5. Unscrew two M3 X 6 screws on the back of DVD assembly to remove DVD cables.
6. Unscrew four M2 X 4 screws on DVD bracket assembly to remove DVD.
9.3.13 Inlet Fan
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.
2. Unscrew two M4 X 8 screws fixing the frame of the fan. Hold the metal handles to pull the fan
assembly out.
3. Unscrew 12 screws fixing the fan.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
