Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-1
9 Structure and
Assembly/Disassembly

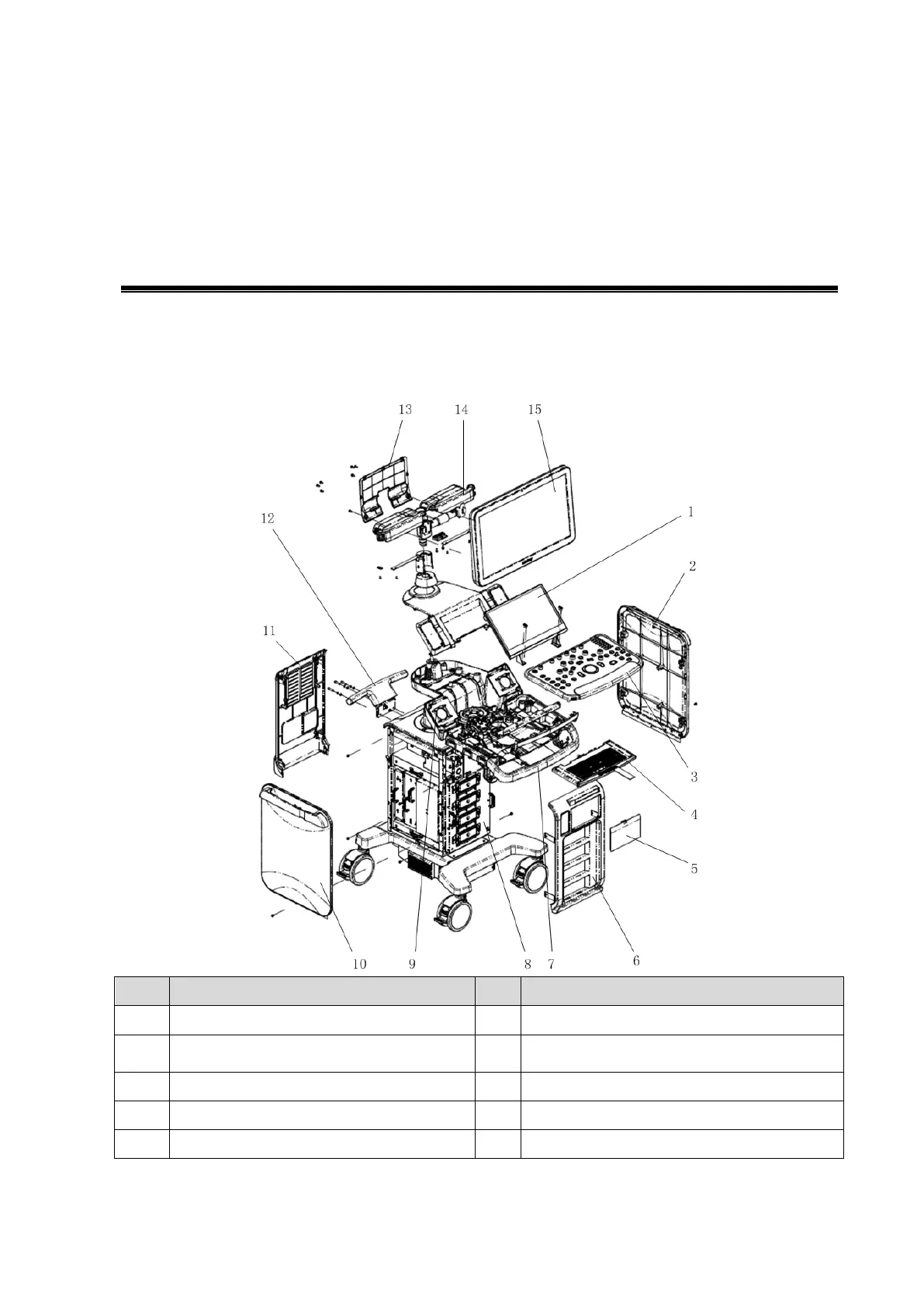

9.1 Structure of the Entire System
No. Name No. Name
<1>. Touchscreen assembly <2>. Right side-panel assembly of main unit
<3>. Top cover assembly of the control panel <4>. Keyboard assembly
<5>.
Printer cover
<6>.
Rear cover assembly of main unit
<7>. Cast-aluminum base <8>. Main body and keyboard assembly
<9>. Speaker assembly
<10>
Left side-panel assembly of main unit

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
