Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-29

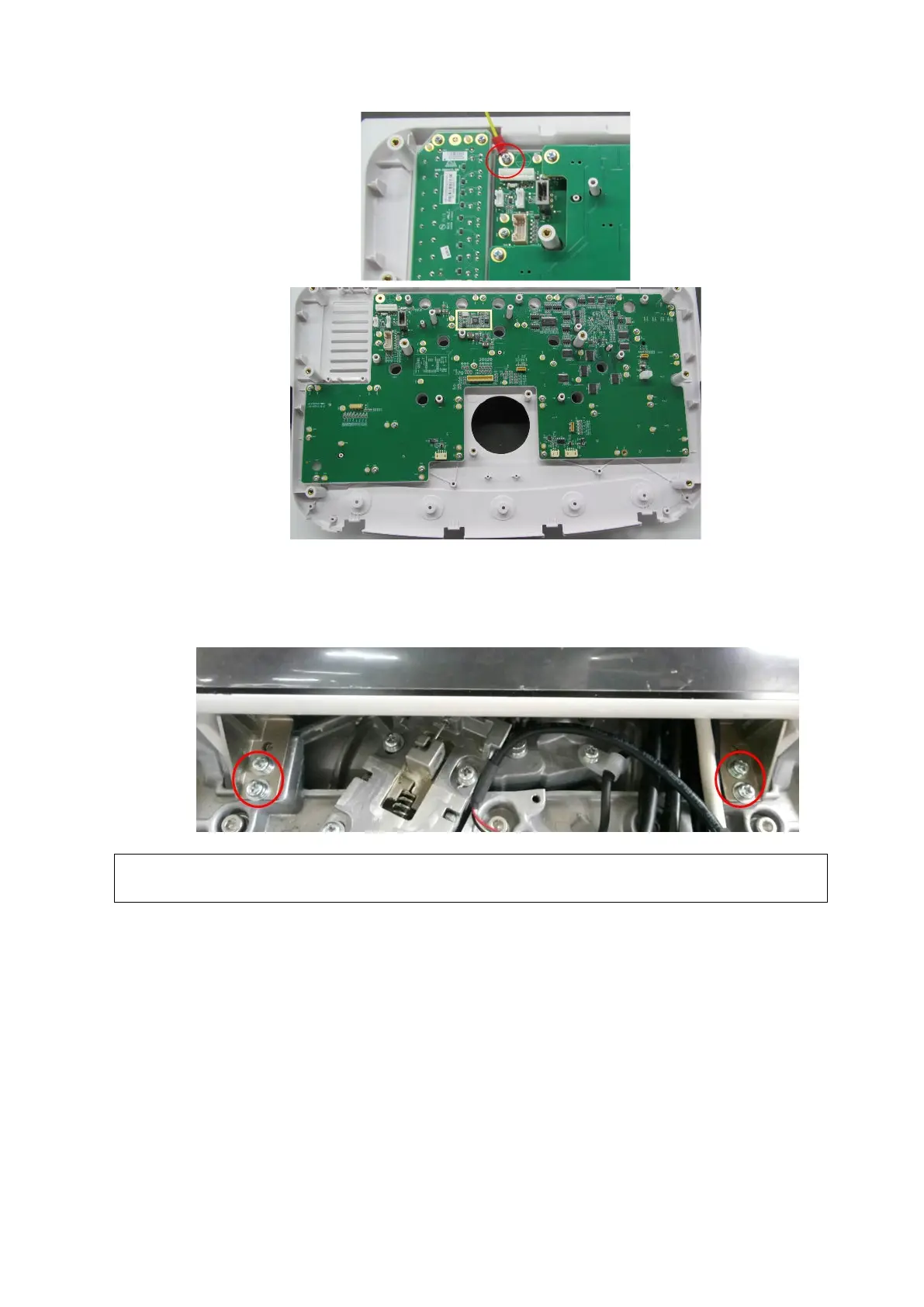

9.3.15.8 Touchscreen Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Unscrew four M4 X 12 SEMS screws from the touchscreen to remove it.
9.3.16 Face Cover Assembly of the Speaker/Speaker
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Unscrew two M4 X 12 SEMS screws from the face cover assembly of the speaker. Lift the
assembly towards the arrow’s direction. Same procedures to remove right assembly.
NOTE:
The connecting cables lie behind the rear cover of the touchscreen. Be careful of
the cables when removing the assembly.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
