Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-19

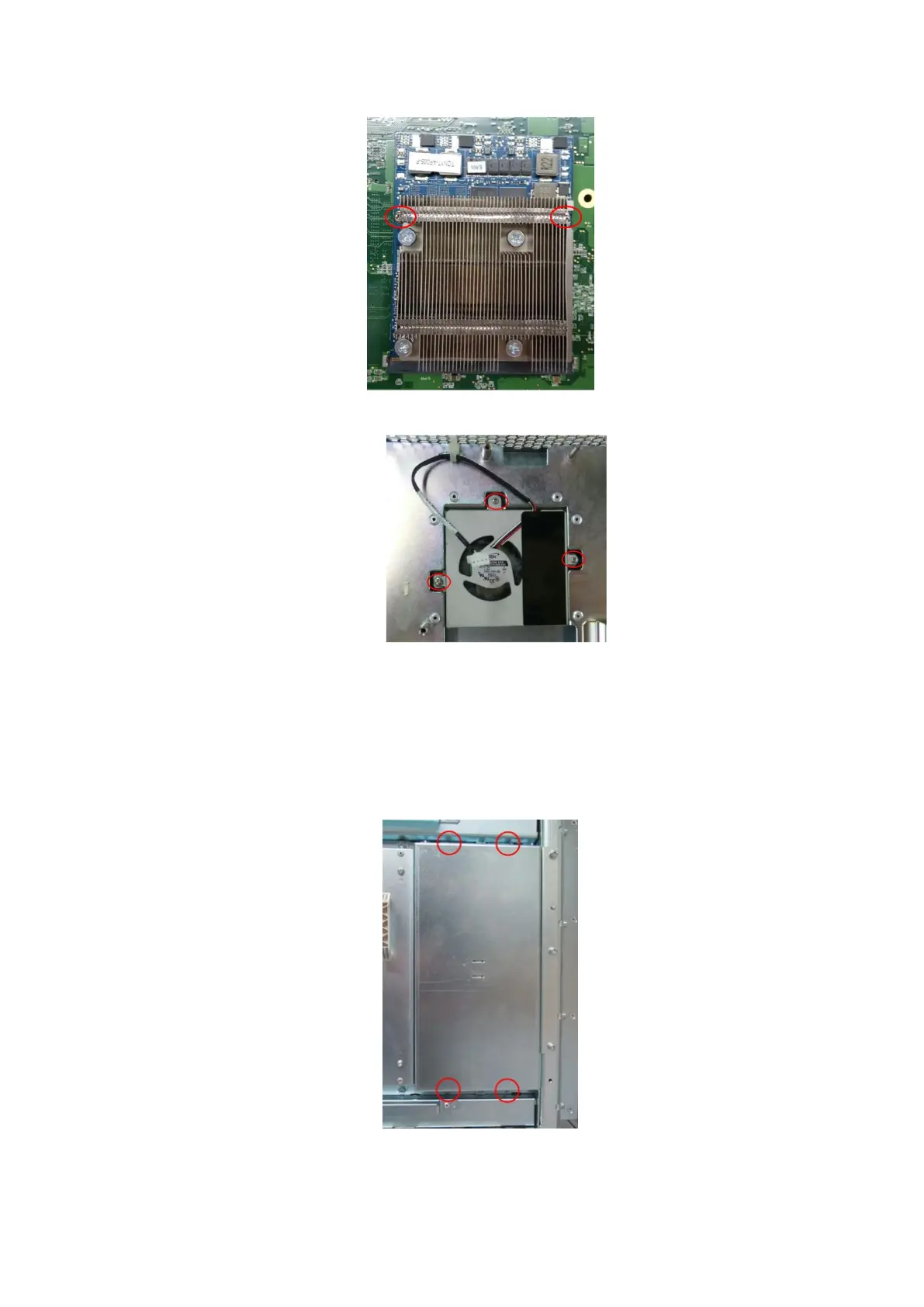

8. Unscrew three M2 X 6 screws on GPU fan to remove GPU fan assembly.
9.3.11 Engine Board and TR Board
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove the left side panel.
2. Unscrew four M4 X 8 screws to remove the metal cover.
3. Release two plastic clips by hands to remove the engine board and TR board.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
