Mindray DC-70 Exp User Manual

9-18 Structure and Assembly/Disassembly

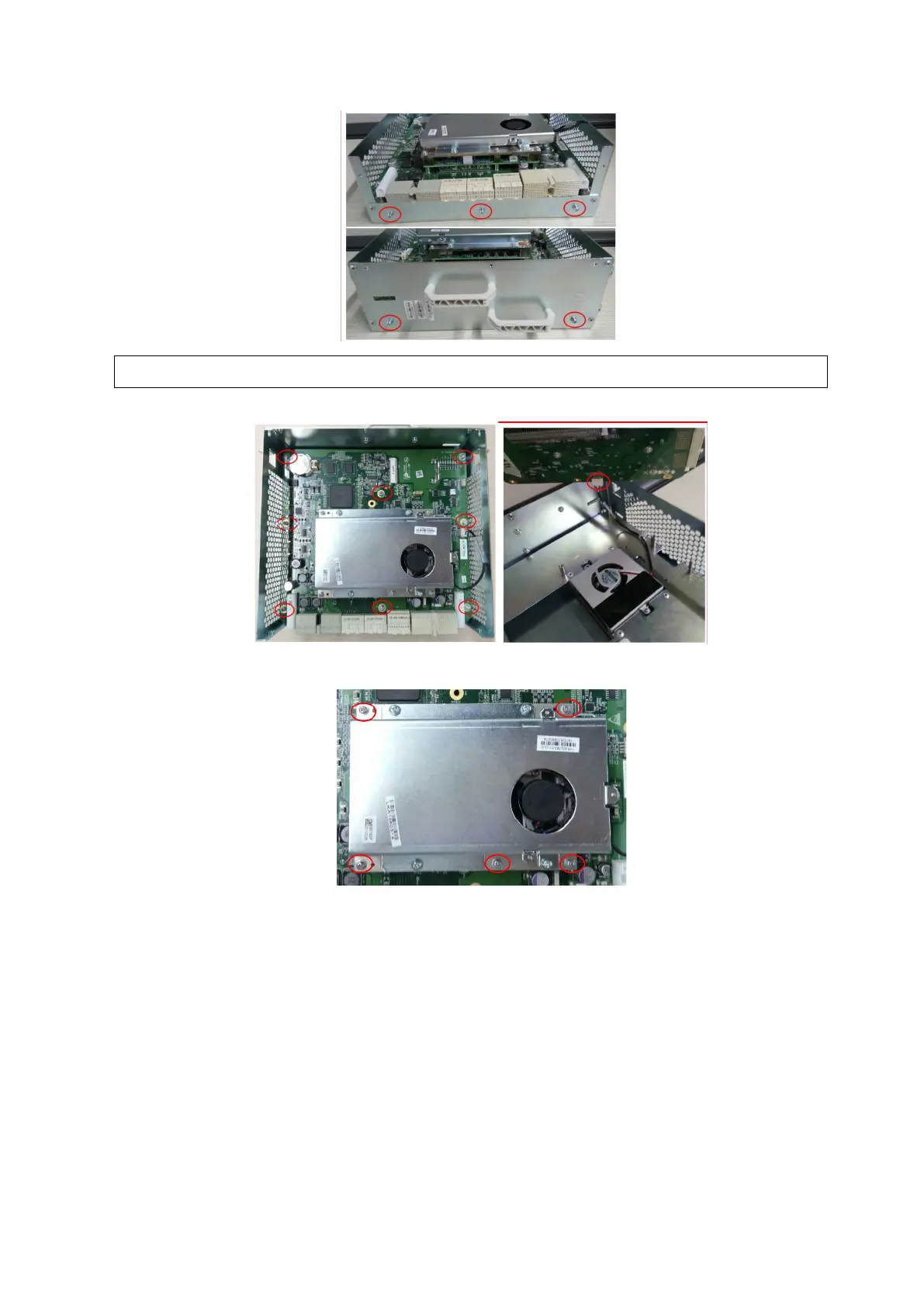

5. Unscrew eight M3 X 8 screws on metal bracket to remove digital board.
6. Unscrew five M2.5 X 20 screws on digital board to remove PC module assembly.
7. Unscrew two M3 X 6 screws on GPU to remove GPU module assembly.
NOTE:
Take notice of bolts’ place on two ends when installing.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
