Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-5
9.3.2 Probe Board Assembly
The disassembly tool: cross-headed screwdriver (M3, M4)

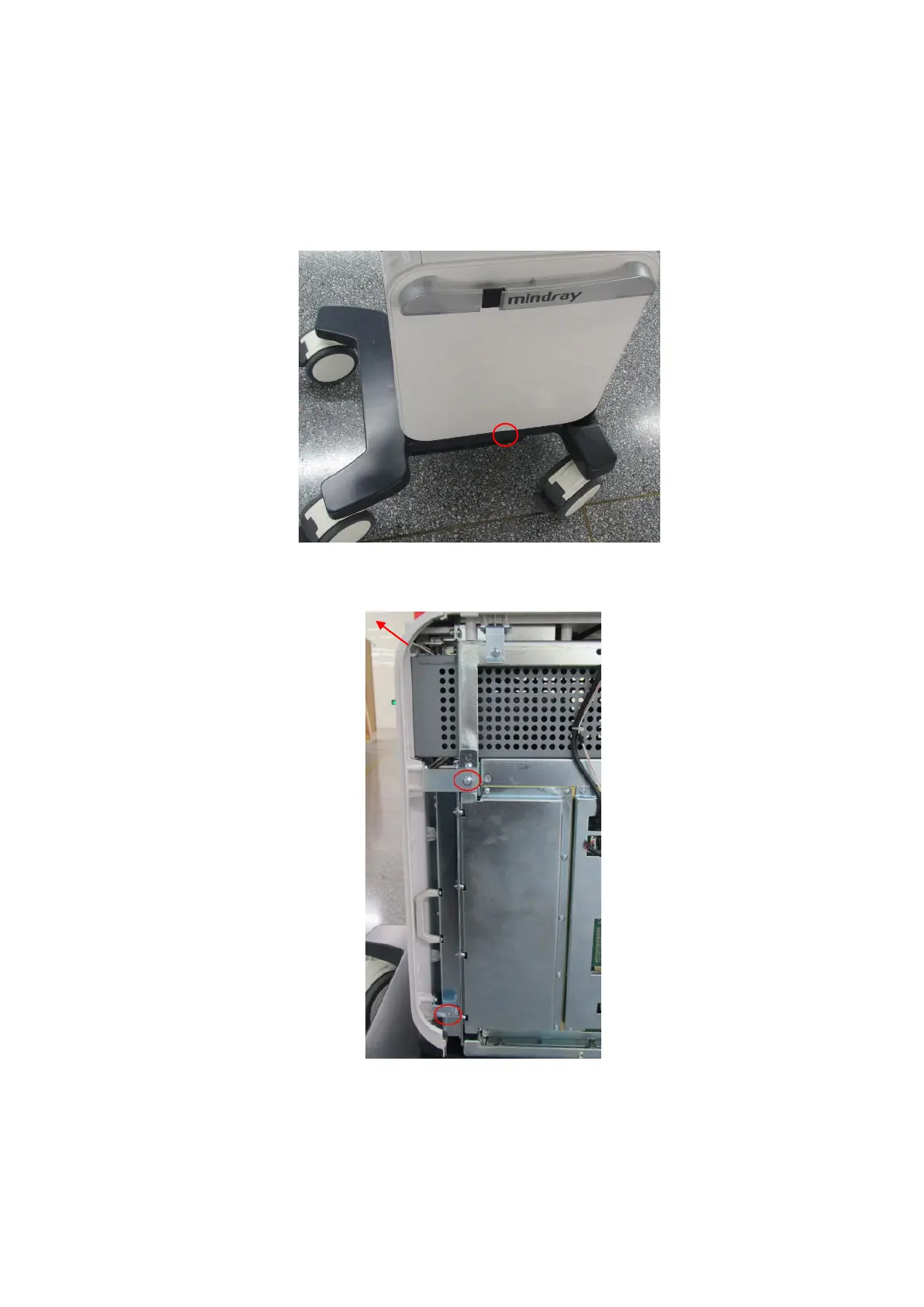

1. Unscrew the M4 X 8 screw on middle part of left side panel’s lower position. Lift the left side
panel upwards to remove it.
2. Follow the procedures of step 1 to remove right side panel.
3. Unscrew two M4 X 8 screws fixing the front cover, and remove the front cover upwards.
4. Unscrew twelve M4 X 8 screws. Hold two plastic handles on the probe board. Pull the probe
board assembly out.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
