Mindray DC-70 Exp User Manual

Field Replaceable Unit 8-21
No.
Order Number
Part Name
Qty.
Remark
E14-1 115-037338-00 PC Module Assembly(FRU) 1
Including fan, radiator.
It is only used for the maintenance of the old PC box
assembly before EAF518F.
E14-2 022-000152-00 Coin battery 3V 620mAh CR2450 1
E14-3 115-075419-01 PC Carrier Board(2161/FRU) 1
It is only used for the maintenance of the old PC box
assembly before EAF518F.
E14-4 115-061708-00 GPU Module(FRU) 1
E14-5 024-000518-00 FAN 12V 7.5CFM 34dB 70*67*12mm 1
The fan for GPU module. Also can be used for PC
module.
After EAF518F, the functions of the PC module and the PC carrier board are integrated on the same board, which is called the PC
carrier board CPU module. The corresponding FRU is shown in the following table.

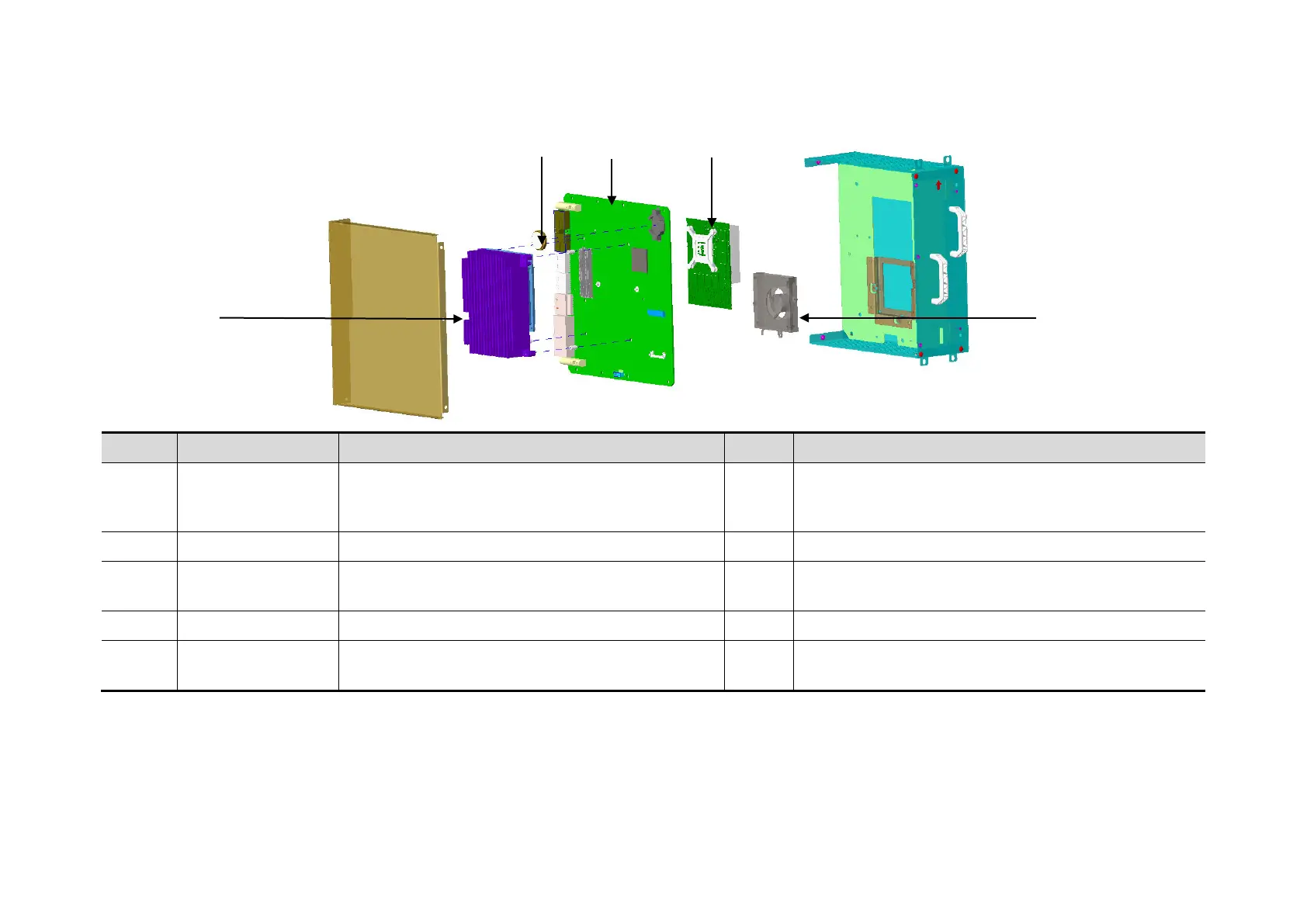

E14-1
E14-3
E14-5
E14-4
E14-2

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
