9-12 Structure and Assembly/Disassembly

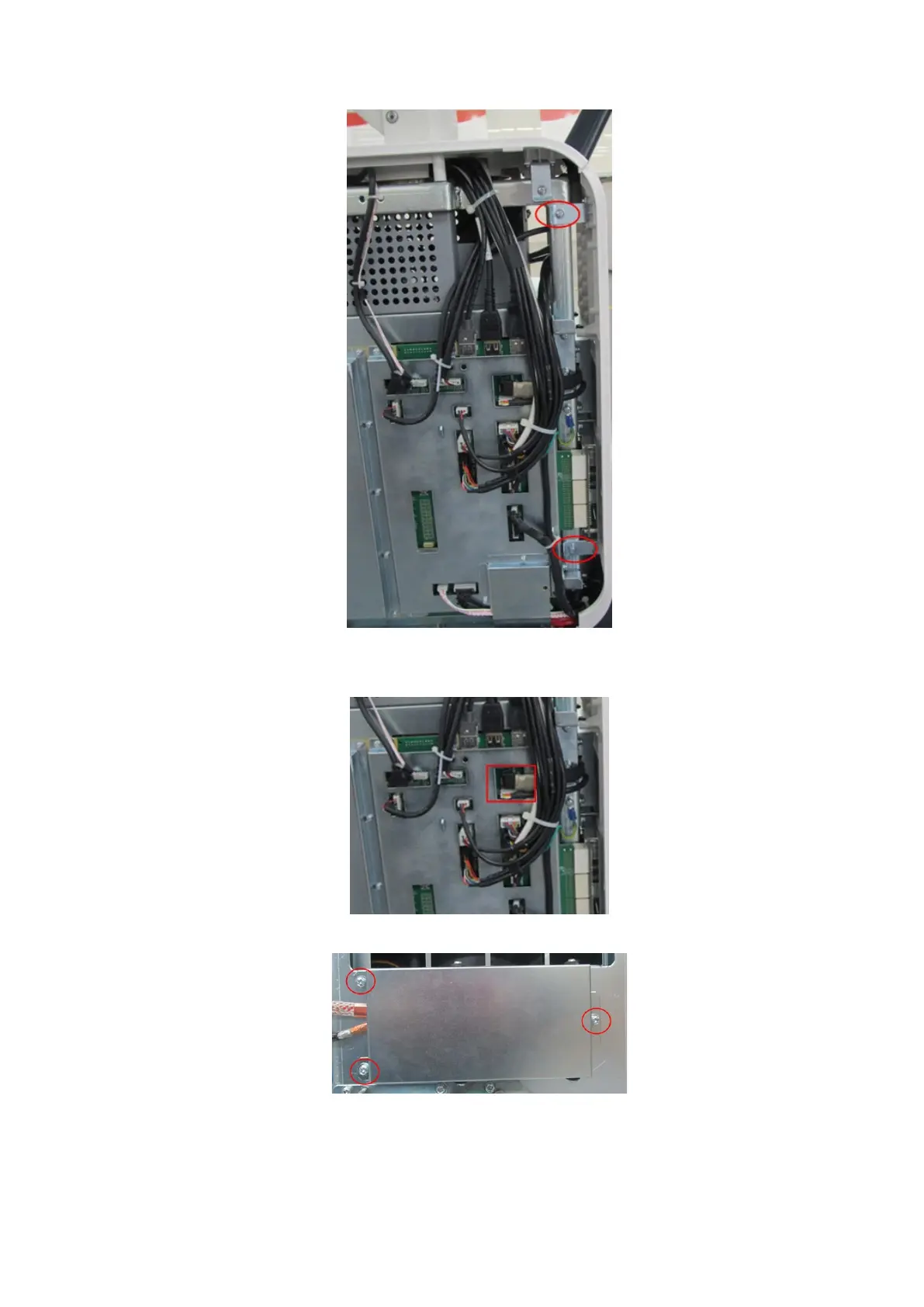

3. Unplug the power supply cable connecting hard disk assembly to the mother board and the plug
of SATA signal cable.
4. Unscrew three M4 X 8 screws fixing the hard disk to remove the hard disk assembly.
5. Pull the power supply cable of the hard disk and SATA signal plug out. Unscrew 2 M3 X 8
screws on two sides to remove the hard disk.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
