9-14 Structure and Assembly/Disassembly
4. Unscrew one M4 X 8 screw fixing the grounding terminal. Unscrew one M4 X 10 inner hex fixing
bolt used to fix the electronic assembly on the base.

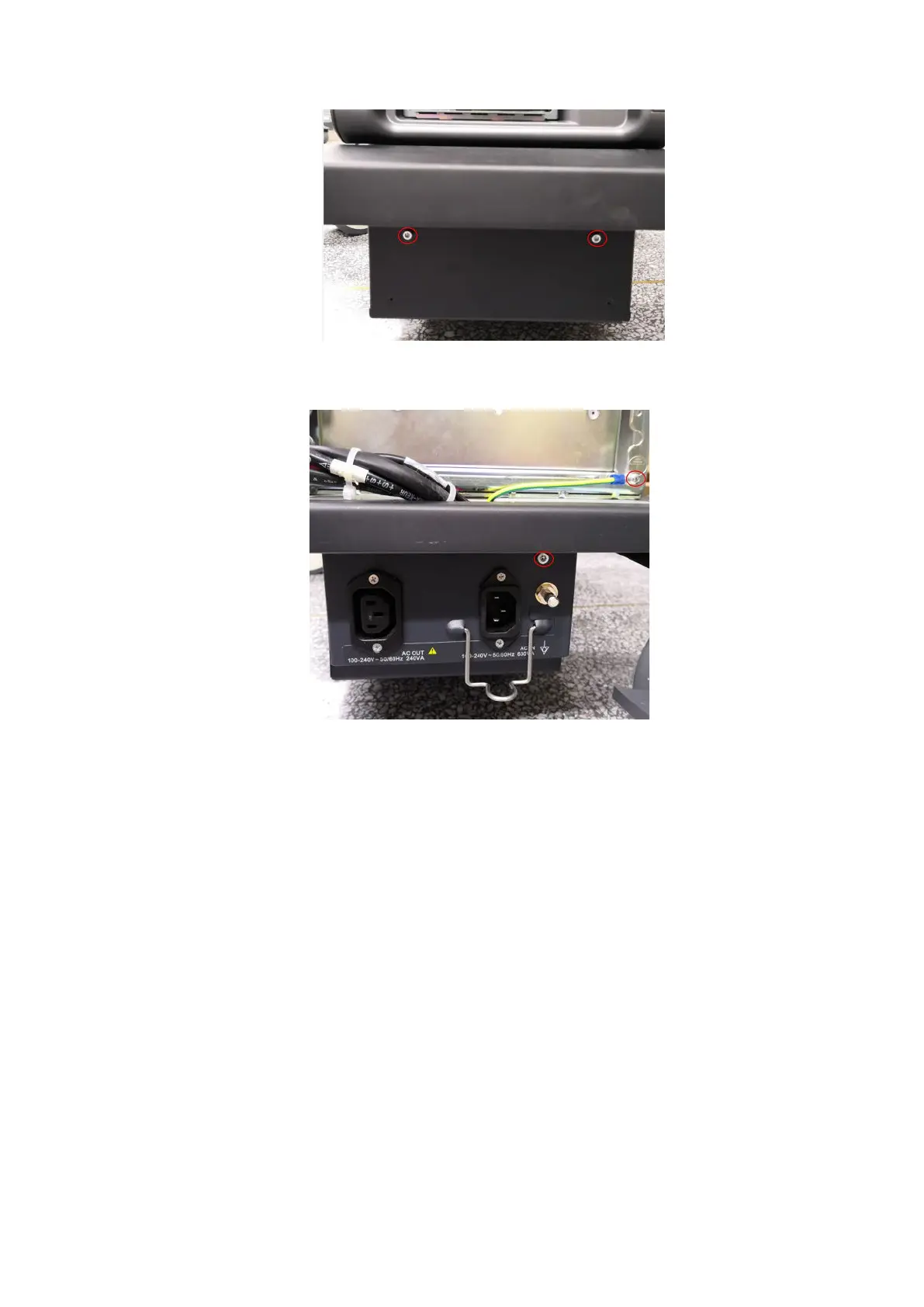

5. Pull out the electronic assembly to the location shown in the following figure (do not pull out it
entirely), cut off the three cable ties, remove the three connecting plugs, and then remove the
five M4 X 8 combination screws to disconnect the cables from the electronic assembly.
