Structure and Assembly/Disassembly 9-23

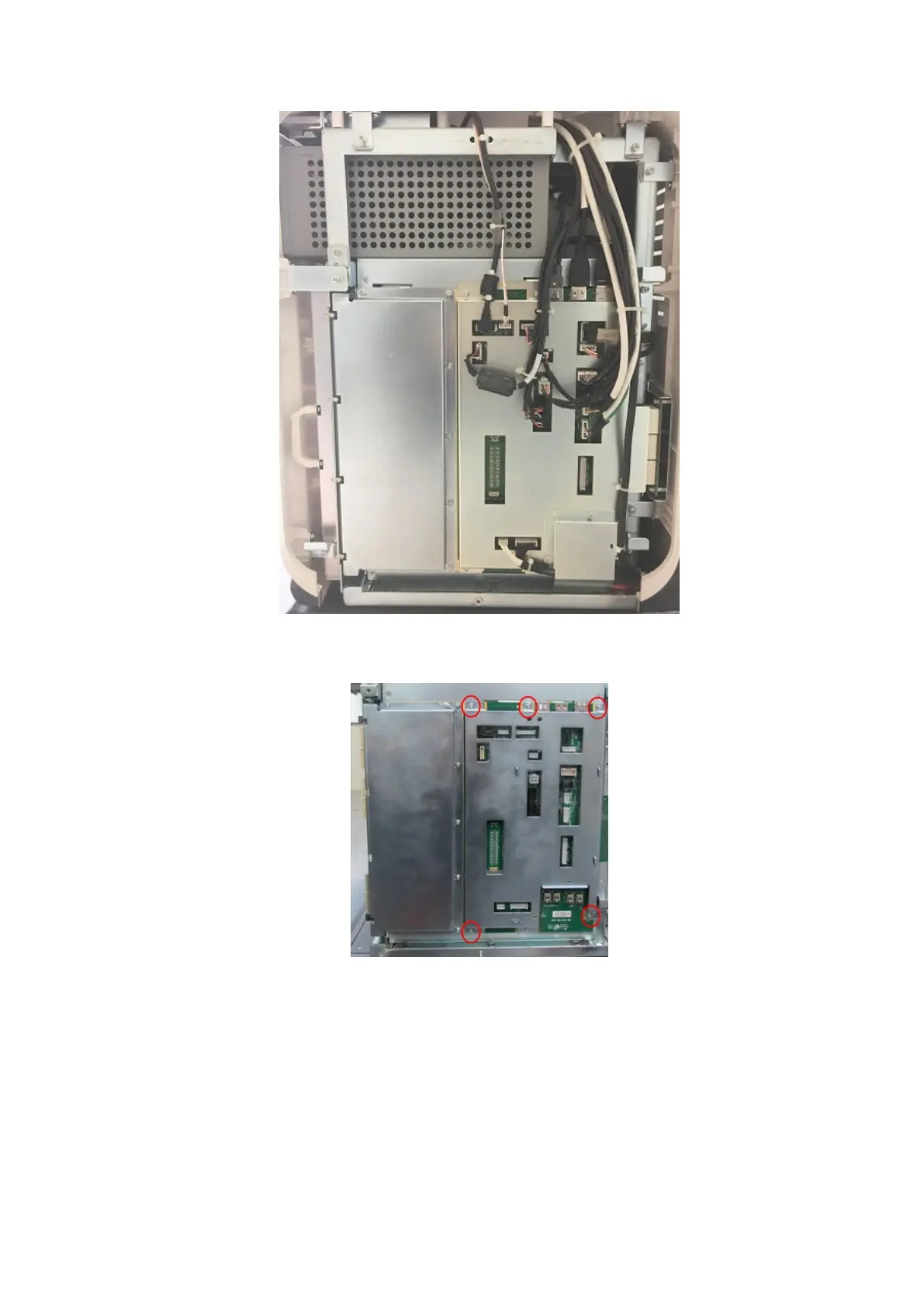

6. Unplug the cables on the motherboard. Unscrew five M3 X 8 screws to remove the shield of the

mother board upwards. Be careful with the electronics on the mother board.

7. Unscrew ten M3 X 8 screws to remove the shield of the mother board upwards. Be careful with

the electronics on the mother board.
