Mindray DC-70 Exp User Manual

Structure and Assembly/Disassembly 9-35

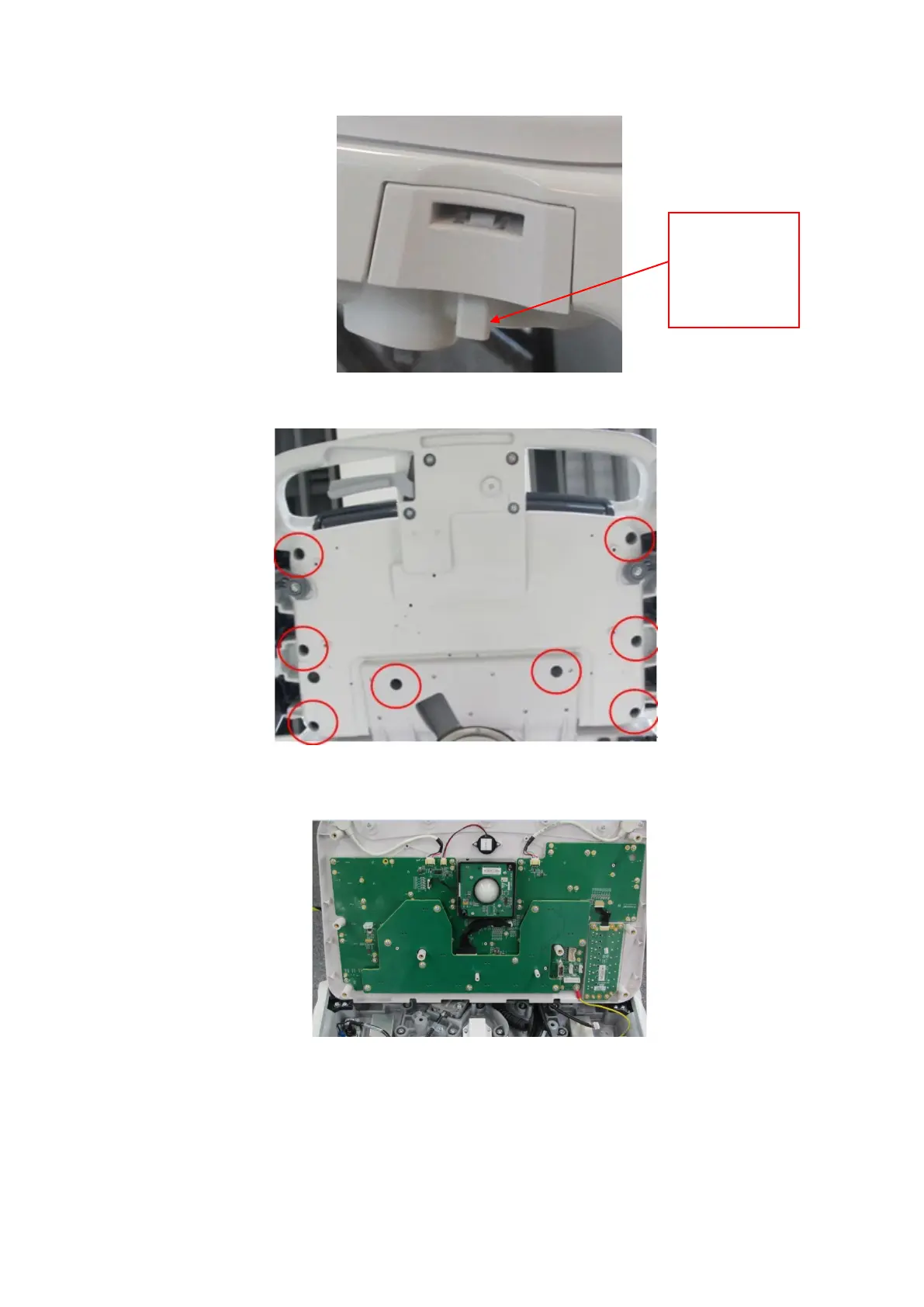

2. Unscrew eight M4 X 12 screws on the control panel assembly.
3. Lift the upper cover up around the margin. Disconnect all plugs on the upper cover assembly.
The control panel assembly and the main unit fall apart then.
4. Unscrew the M3 X 8 combination screw on the cast-aluminum base to remove the control panel
assembly.
Press the clips
inwards.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
