Mindray DC-70 Exp User Manual

10-8 Optional Installation/Assembly

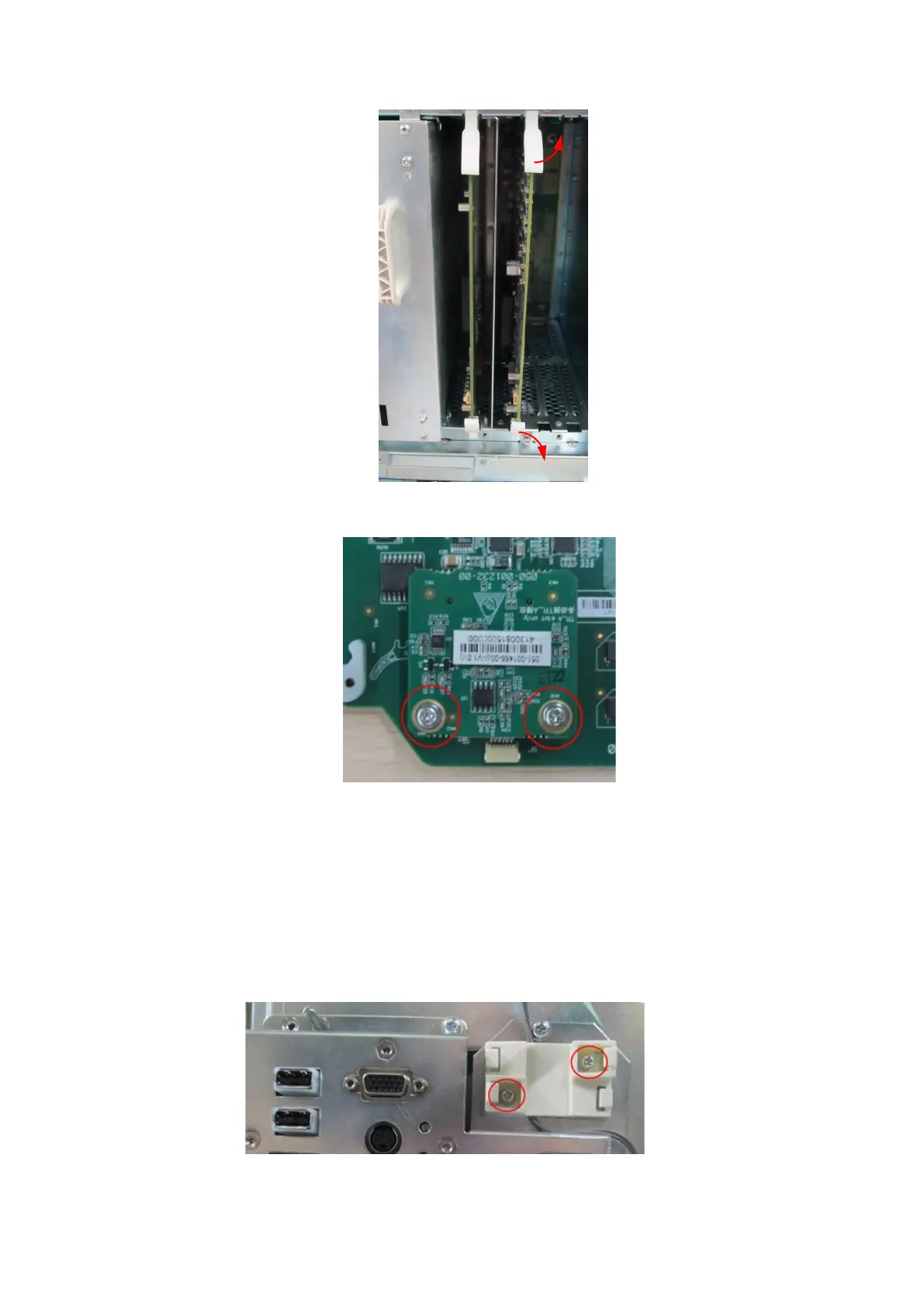

3. Fix CW board to TR board in socket A with two M3 X 8 screws.
4. Insert TR board into corresponding slot. Fix the plastic clips. Assemble the left side panel. Then,
the installation is completed.
10.2.4 The Assembly of Wireless Network Adaptor
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove the left/right side panels and the rear cover (refer to chapter 9.3.2).
2. Fix the cable bracket to the device with two M3 X 8 screws.
3. Insert WIFI board into the cable bracket.
