Mindray DC-70 Exp User Manual

10-10 Optional Installation/Assembly
7. The installation is completed after the right/left side panels and the rear cover are assembled.

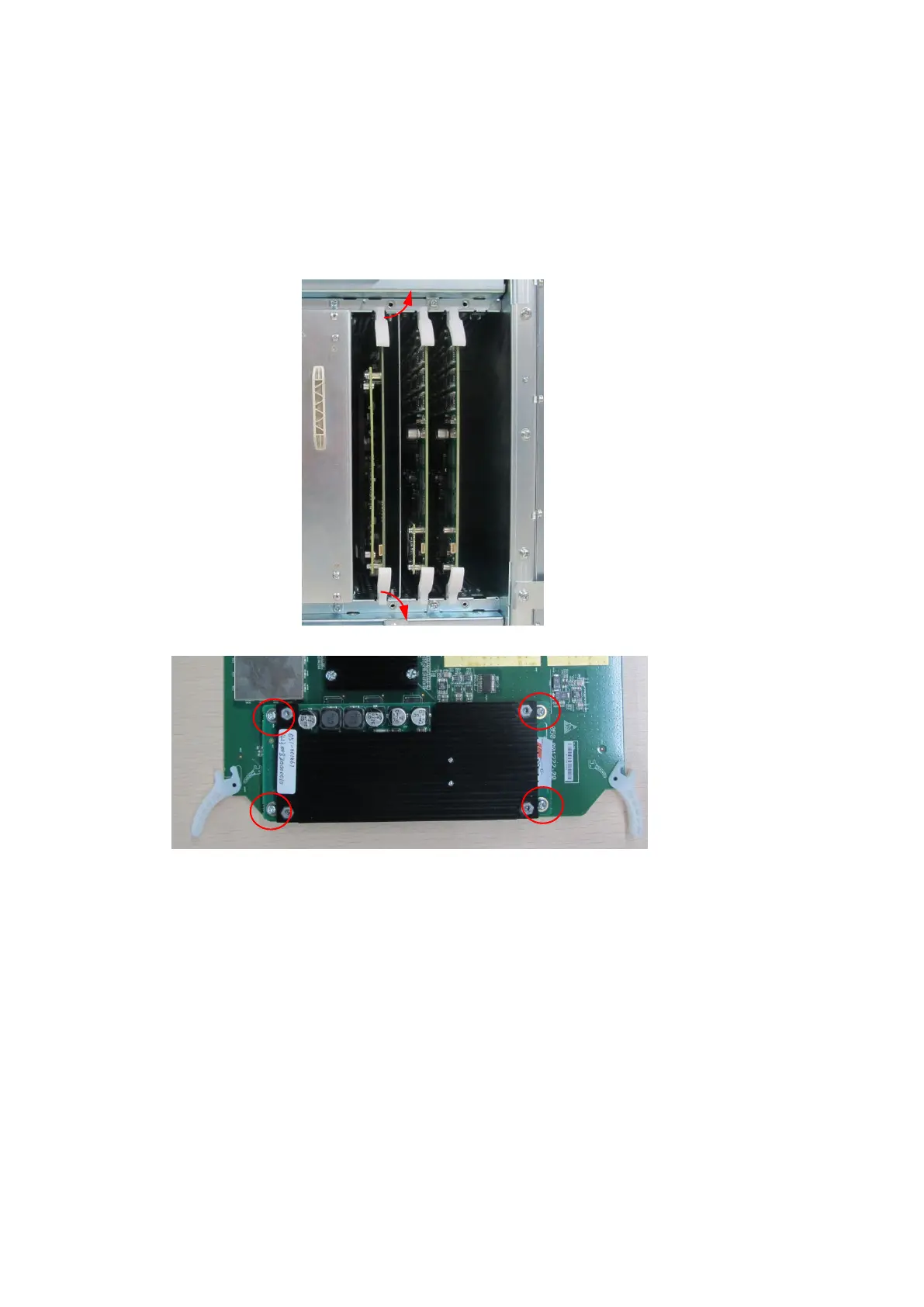

10.2.5 4D Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove the left side panels (refer to chapter 9.3.2 step 1).
2. And remove engine board.
3. Fix 4D assembly to corresponding positions on engine board with four M3 X 8 screws.
4. Insert engine board into corresponding slot. Fix the plastic clips. Assemble the left side panel.
Then, the installation is completed.

Mindray DC-70 Exp Specifications

General

Touch Screen Size	10.4 inch
Probe Ports	4
Power Supply	100-240V AC, 50/60Hz
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Cardiac, OB/GYN, Vascular
Weight	85 kg
Doppler Modes	PW, CW, Color Doppler, Power Doppler
Imaging Modes	2D, M-Mode, 4D
Storage	500GB hard drive
