9-12 Structure and Assembly/Disassembly

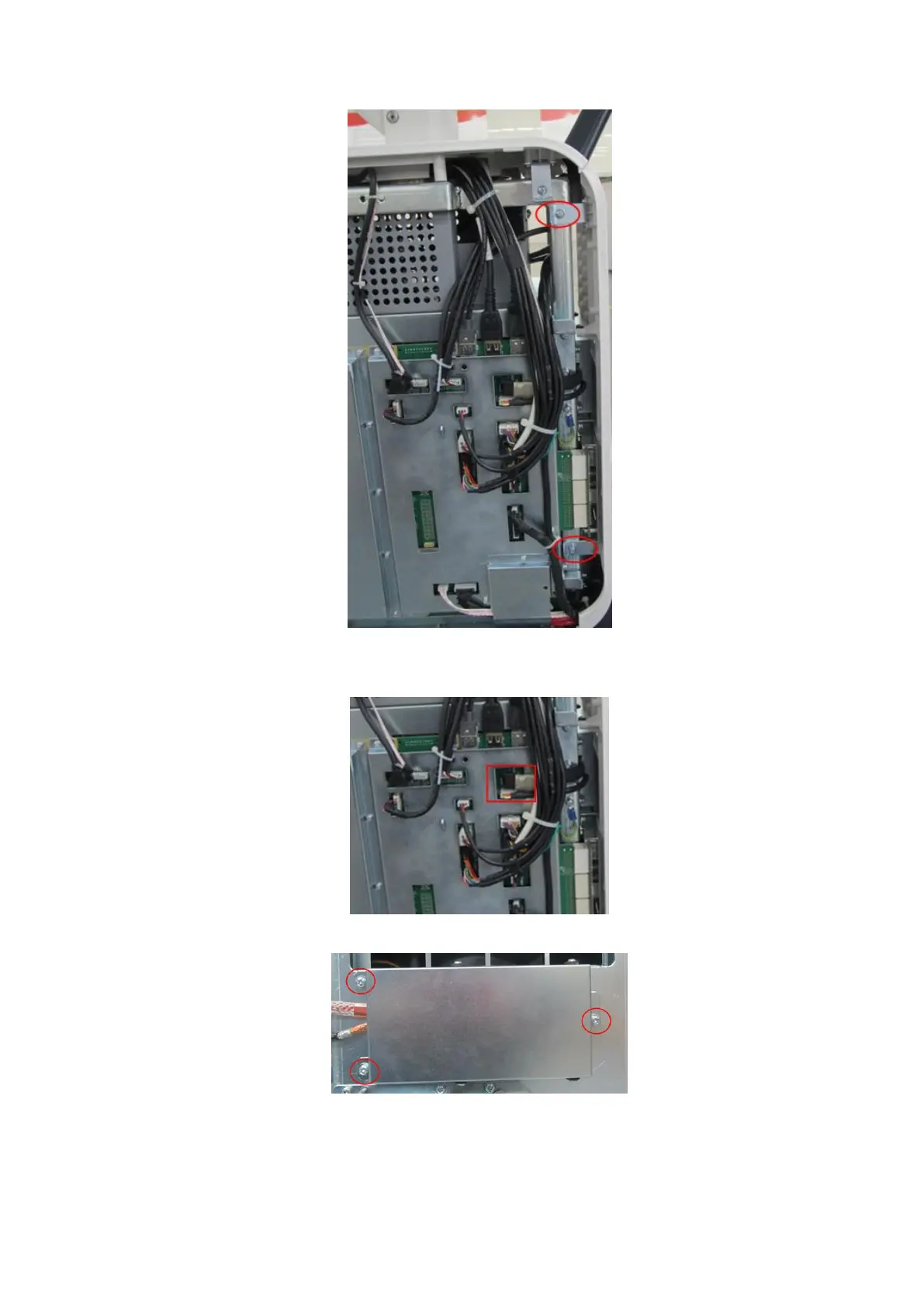

3. Unplug the power supply cable connecting hard disk assembly to the mother board and the plug
of SATA signal cable.
4. Unscrew three M4 X 8 screws fixing the hard disk to remove the hard disk assembly.
5. Pull the power supply cable of the hard disk and SATA signal plug out. Unscrew 2 M3 X 8
screws on two sides to remove the hard disk.
