Structure and Assembly/Disassembly 9-13
9.3.8 Electronic Assembly on the Base
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex wrench (M4), scissors

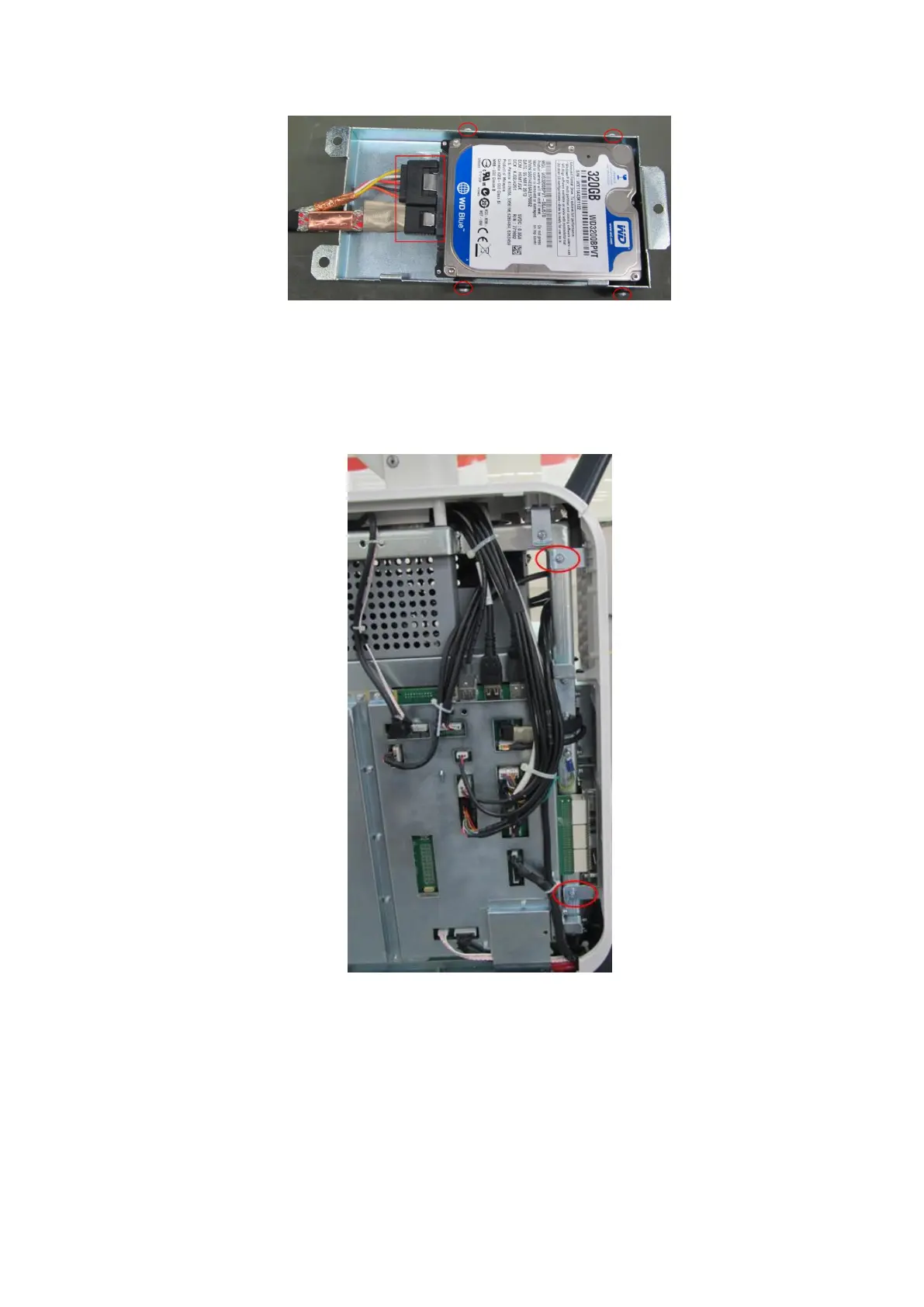

1. Follow step 1 and step 2 in Chapter 9.3.2 to remove left and right side panels.
2. Unscrew two M4 X 8 screws fixing the rear cover, and remove the rear cover.
3. Unscrew two M4 X 10 inner hex fixing bolts.
