Mindray DC-80A Service Manual

Structure and Assembly/Disassembly 9-23
9.3.14 Motherboard
The disassembly tool: cross-headed screwdriver (M3, M4), diagonal cutting pliers, anti-electrostatic
glove.
1. Follow step 1 to step 3 in Chapter 9.3.2 to remove the left/right side panels and the front cover.
2. Refer Chapter 9.3.2 to unscrewing the probe assembly.
3. Refer Chapter 9.3.6 to unscrewing the rear cover and IO assembly.
4. Refer Chapter 9.3.9 to Chapter 9.3.11 to removing DC box assembly, PC assembly, engine
board and TR board.
5. Unscrew the M4 X 8 grounding screw on the right side of the device.

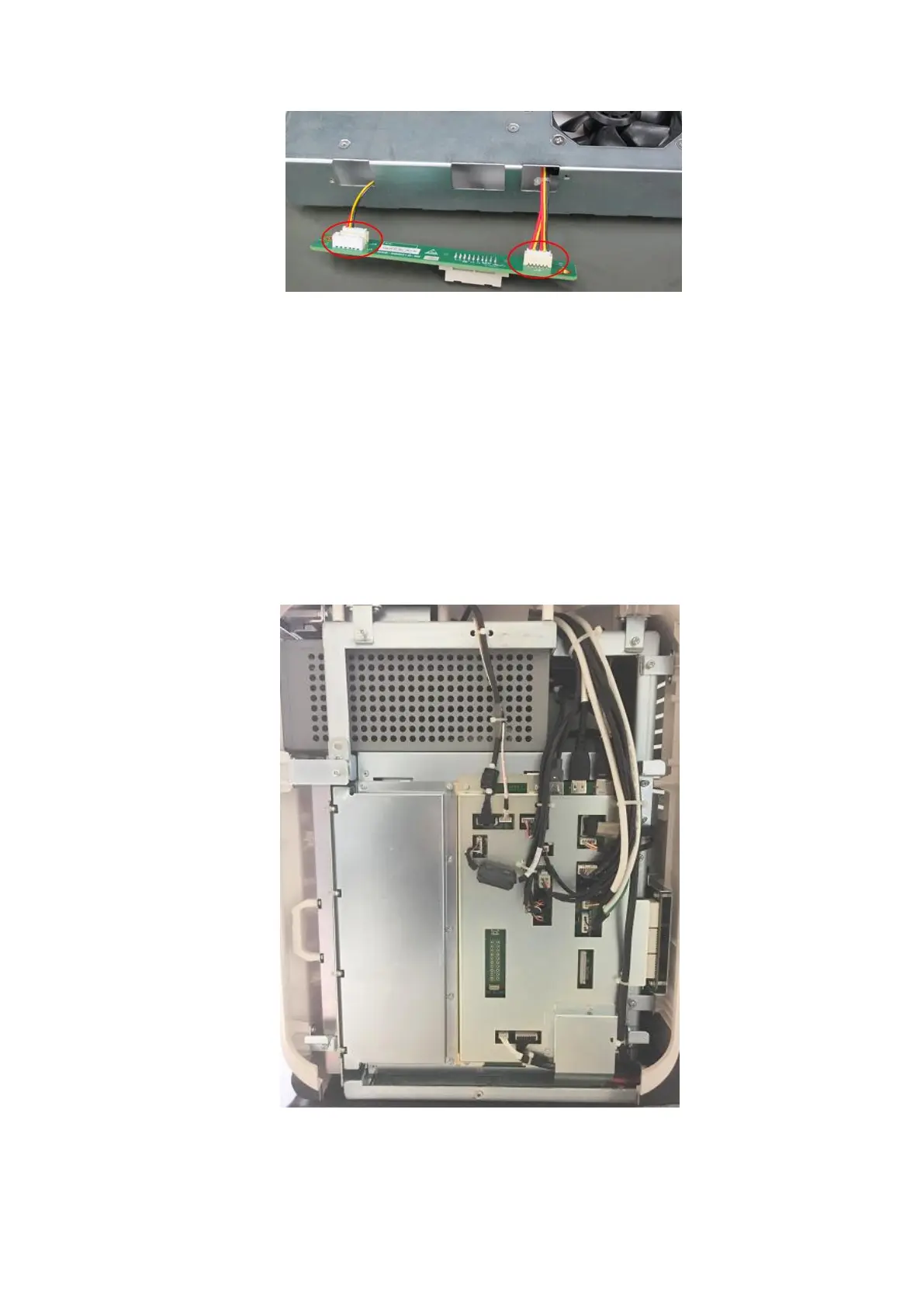

6. Unplug the cables on the motherboard. Unscrew five M3 X 8 screws to remove the shield of the
mother board upwards. Be careful with the electronics on the mother board.
