9-24 Structure and Assembly/Disassembly

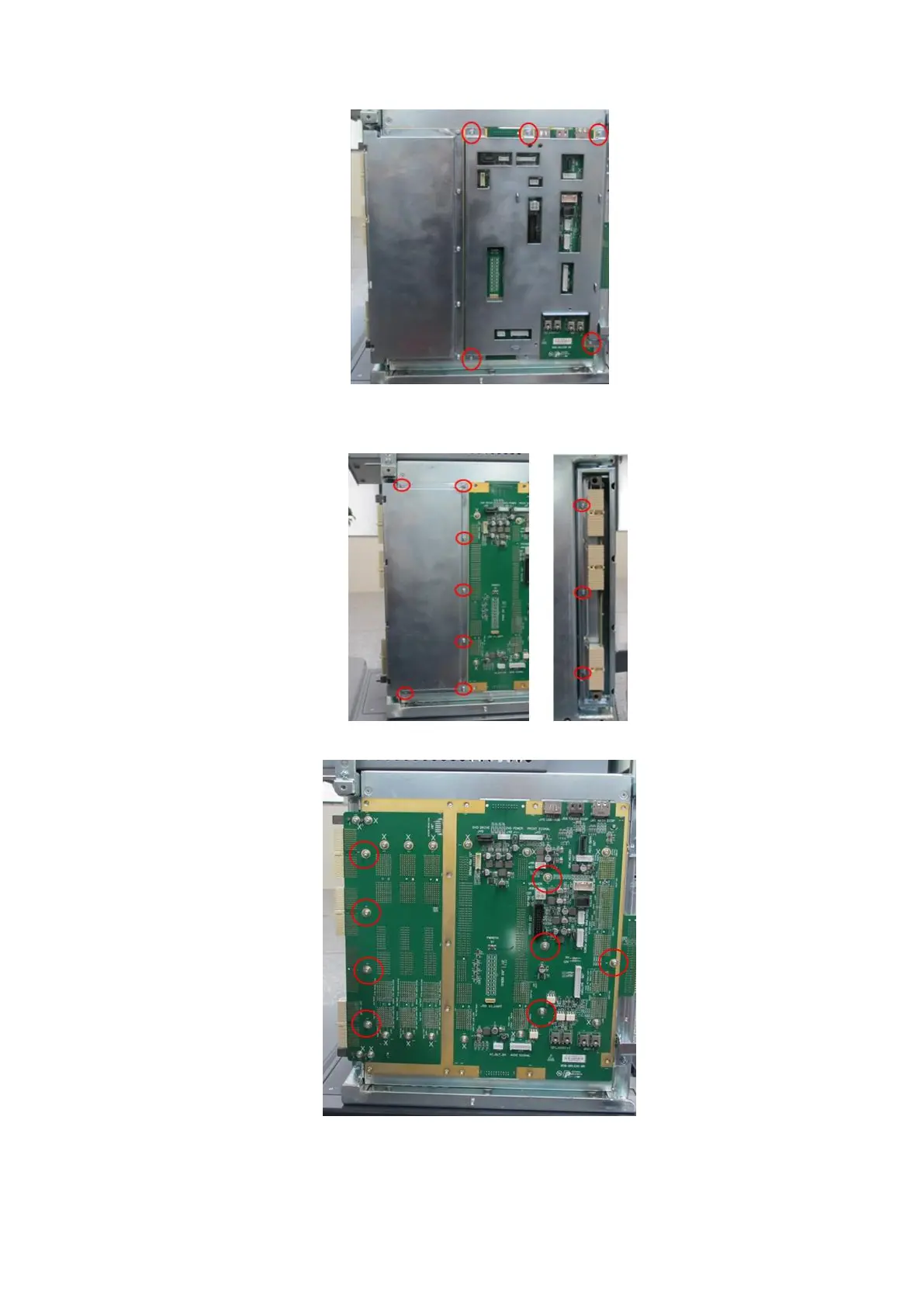

7. Unscrew ten M3 X 8 screws to remove the shield of the mother board upwards. Be careful with

the electronics on the mother board.

8. Unscrew eight M3 X 8 screws to pull the mother board out.
