Structure and Assembly/Disassembly 9-11
7. Pull it upwards to remove the cable board.

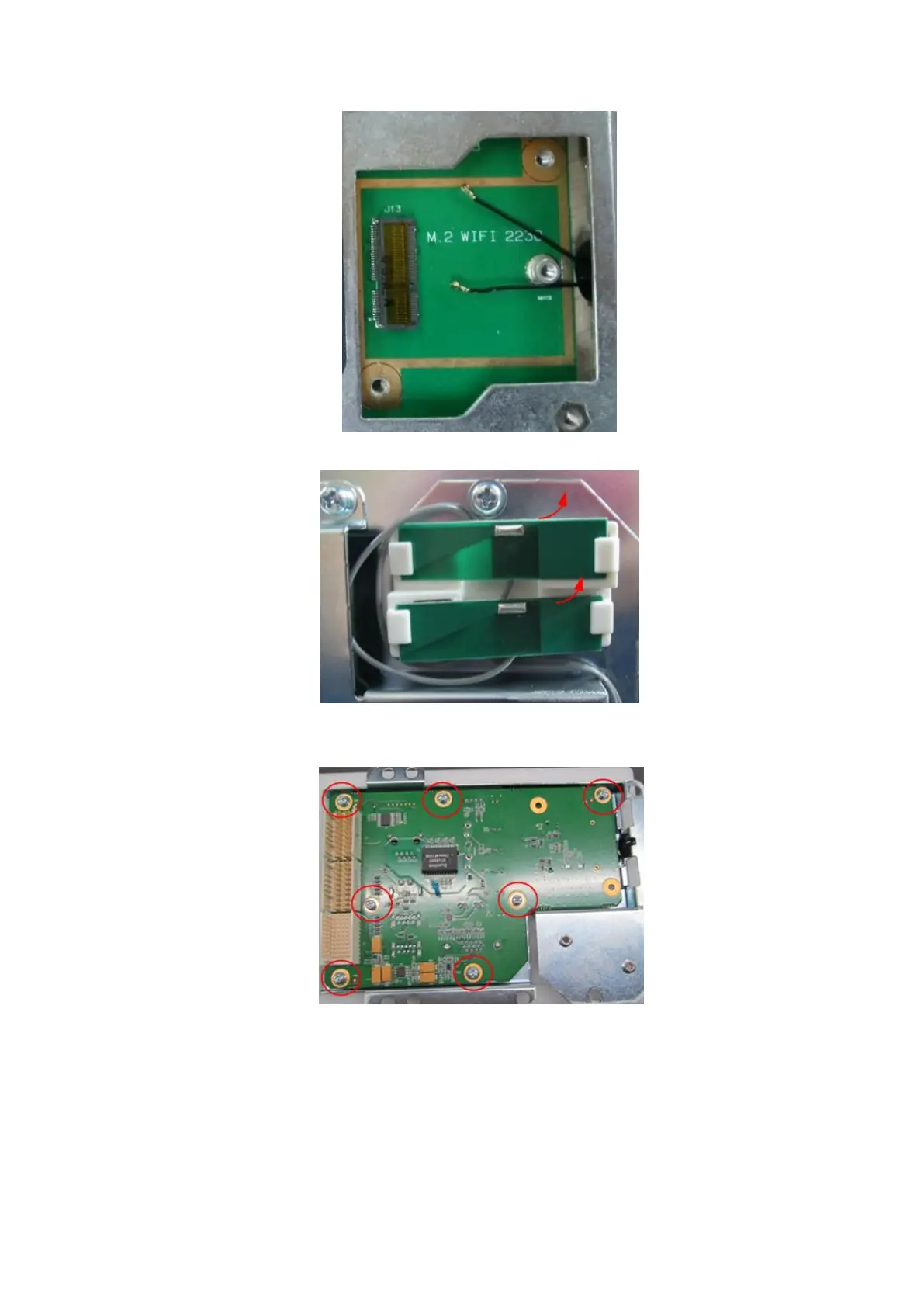

8. Unscrew seven M3 X 8 screws to remove IO board.
9.3.7 HDD
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 and step 2 in Chapter 9.3.2 to remove left and right side panels.
2. Unscrew two M4 X 8 screws fixing the rear cover, and remove the rear cover.
