Mindray DC-80A Service Manual

9-22 Structure and Assembly/Disassembly

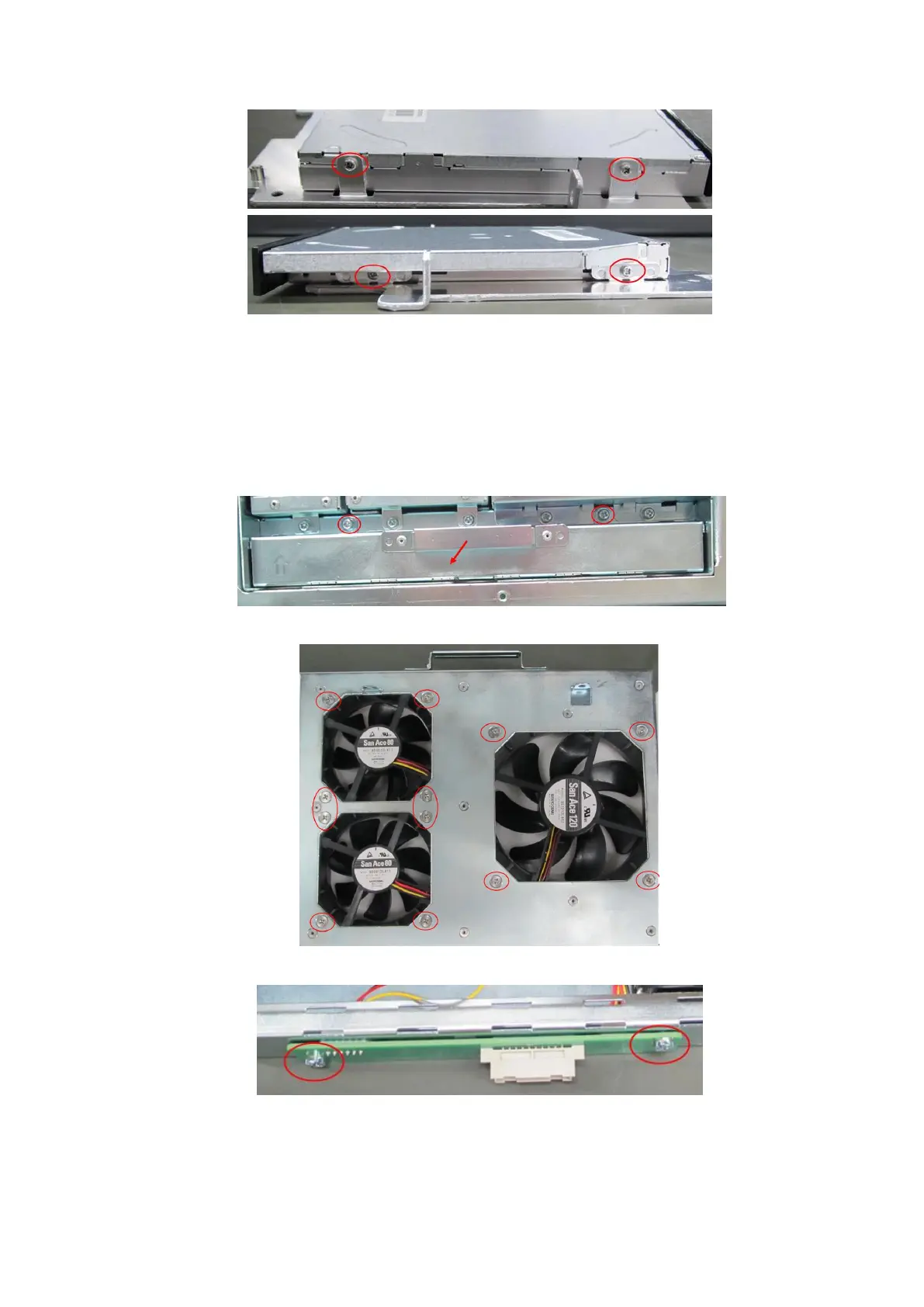

9.3.13 Inlet Fan
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.
2. Unscrew two M4 X 8 screws fixing the frame of the fan. Hold the metal handles to pull the fan
assembly out.
3. Unscrew 12 screws fixing the fan.
4. Unscrew two M3 step screws fixing PCBA, and remove fan PCBA.
5. Pull out of the fan socket to remove the fan.
