Structure and Assembly/Disassembly 9-25
9.3.15 Control Panel Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), diagonal cutting pliers, anti-electrostatic
glove.

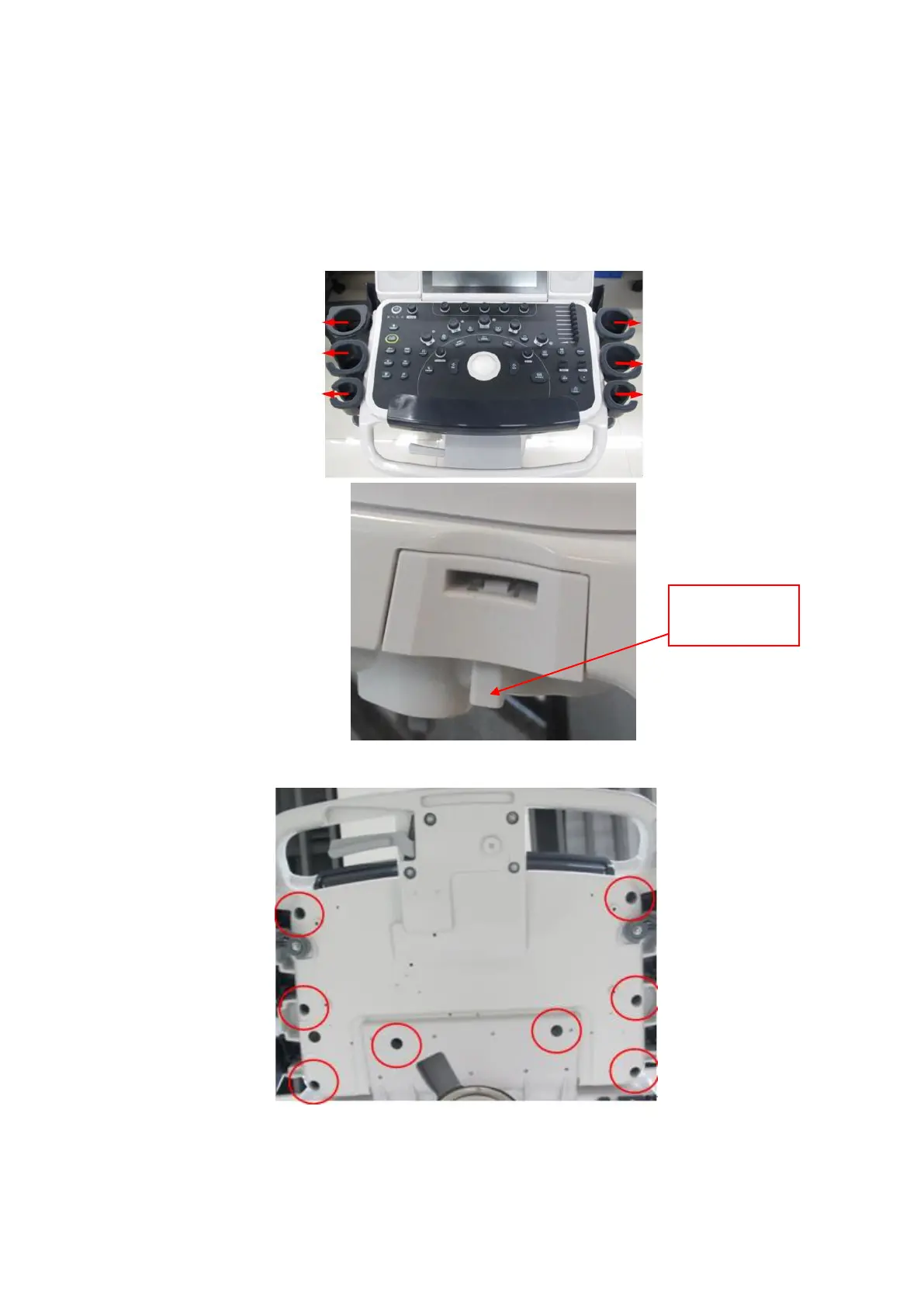

1. Remove the holders on both sides. Press the clips inwards. Lift the holders to both sides to
remove them.
2. Unscrew eight M4 X 12 screws on the control panel assembly.
3. Lift the upper cover up around the margin. Disconnect all plugs on the upper cover. The control
panel and the main unit fall apart then.
To Next Page
