9-26 Structure and Assembly/Disassembly

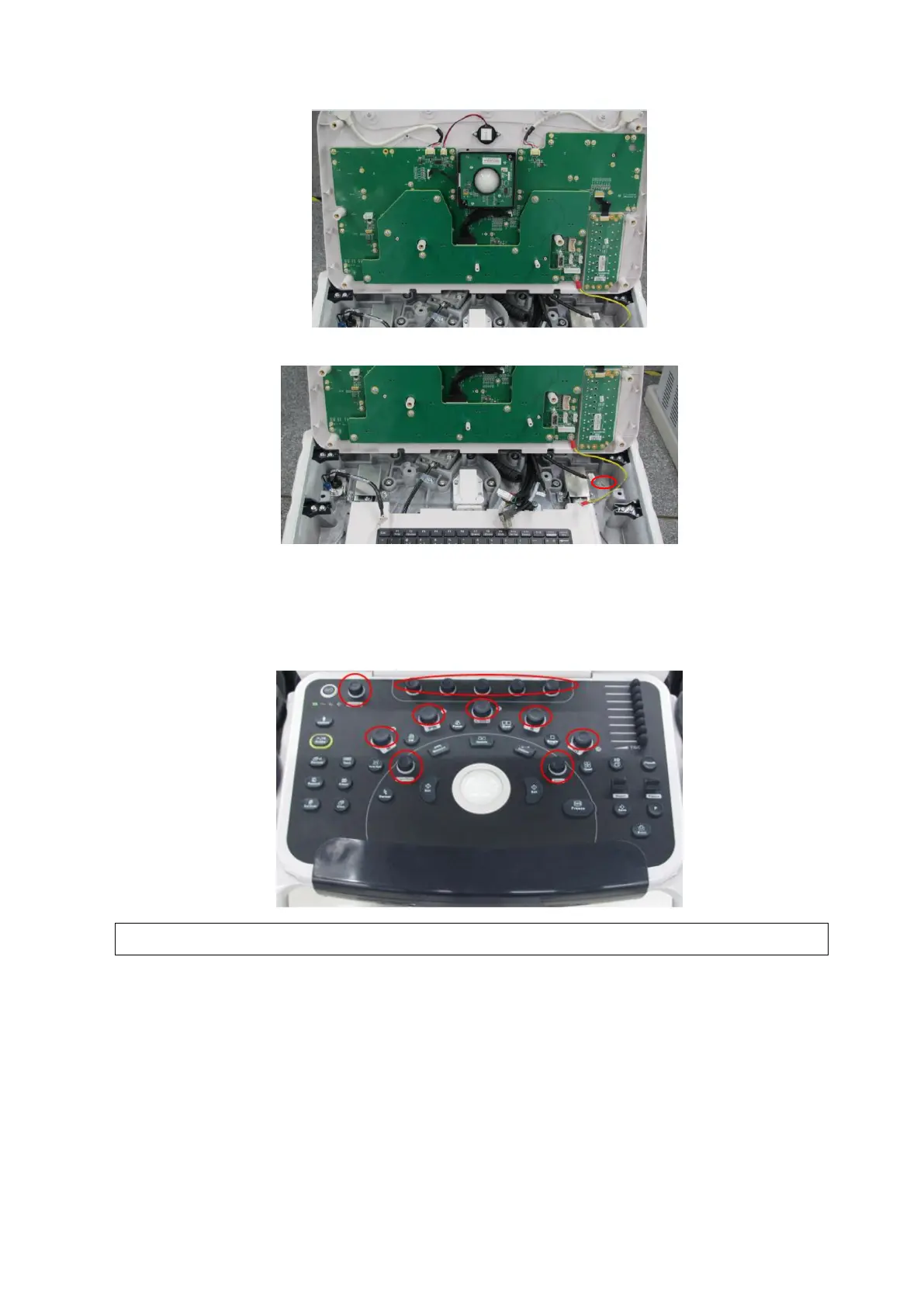

4. Unscrew the M3 X 8 screw on the cast-aluminum base to remove the control panel assembly.
Operate the following procedures to remove the control panel assembly.
9.3.15.1 Encoder Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove six big encoder caps and seven small encoder caps.
2. Unscrew nine PT4 X 10 tapping screws from the encoder board. Disconnect the plug
connecting the encoder to the keyboard to remove the encoder assembly.
To Next Page
