Mindray DC-80A Service Manual

3-8 System Installation
3.3.5 Connecting ECG
Connect the ECG cable to the corresponding interface on the physio panel under the control panel.
See “2.1.2.3 Physio Panel” for details.
3.3.6 Installing Probe/Gel Holder

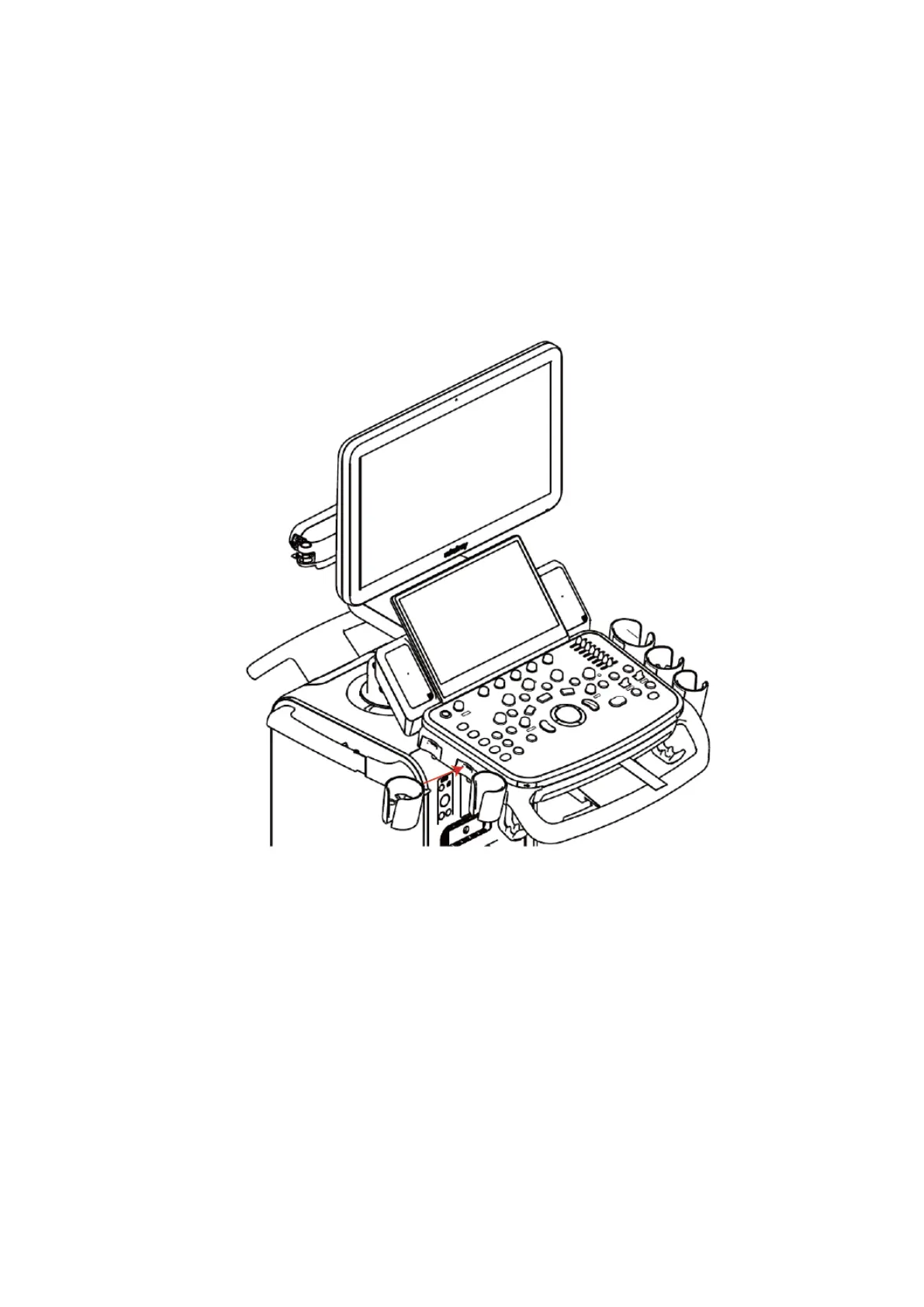

As shown in the figure below, align the buckle of the holder to the slot at the side of the control panel
and then insert the buckle into the slot until the buckle clicks and locks.
◼ Uninstalling
Press the clip in the direction of the arrow to get out the holder.
