Structure and Assembly/Disassembly 9-31
9.3.17 Intra-cavity Probe Holder and Disassembly of
Switching Part
The disassembly tool: cross-headed screwdriver (M3, M4).

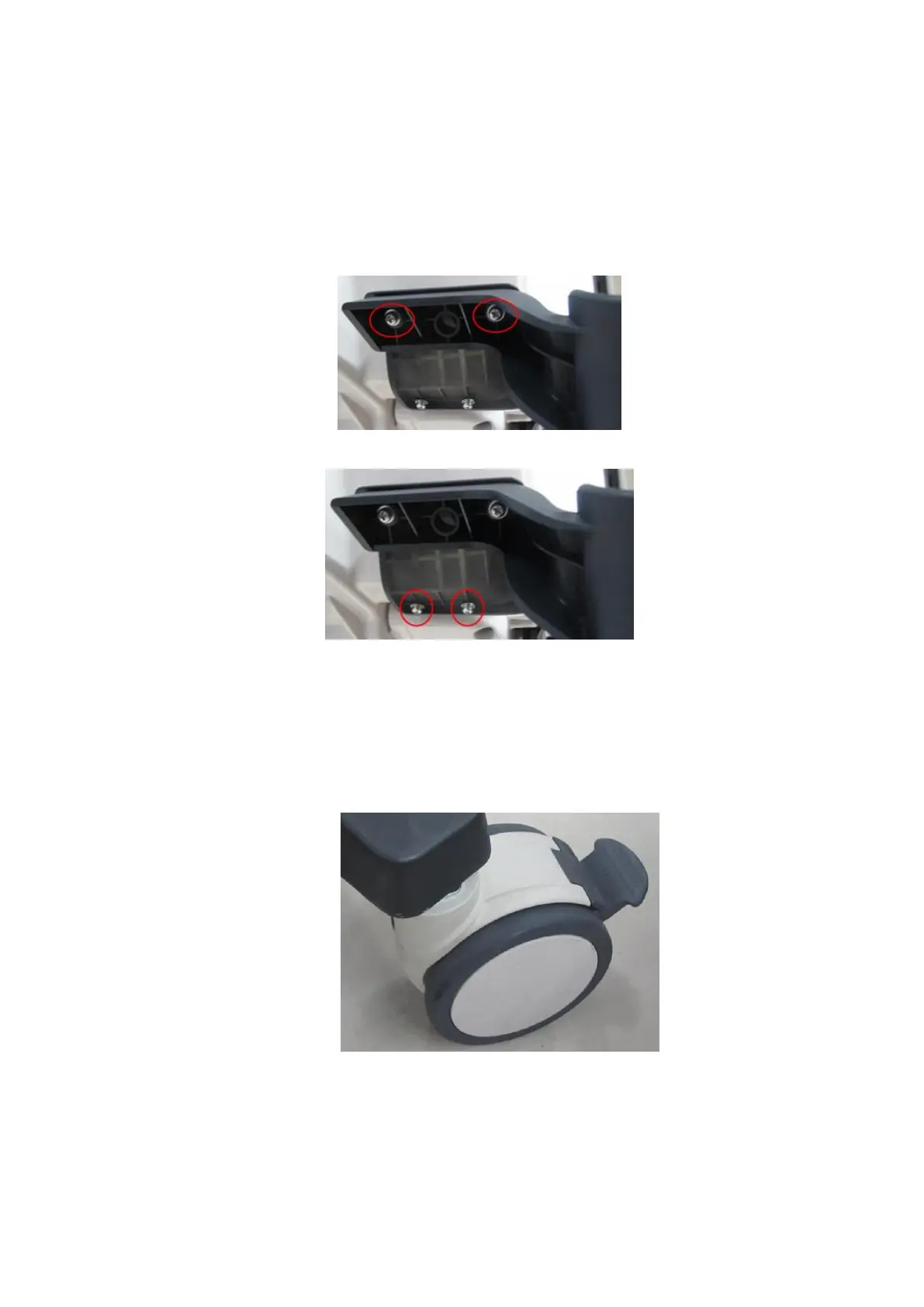

1. Unscrew two screws M4 X 12 SEMS screws from intra-cavity probe holder to remove it.
2. Unscrew two screws M4 X 12 SEMS screws from switching part to remove it.
9.3.18 Caster
The disassembly tool: open-ended spanner, inner hex spanner.
For total braking casters:
1. Lock the 3 total braking casters of the device (step the caster “ON” downwards). Incline the
device for 30 degrees.
2. Use the spanner to lock the stud and turn the spanner clockwise to remove the caster.
