Mindray DC-80A Service Manual

9-16 Structure and Assembly/Disassembly
remove DC box assembly.

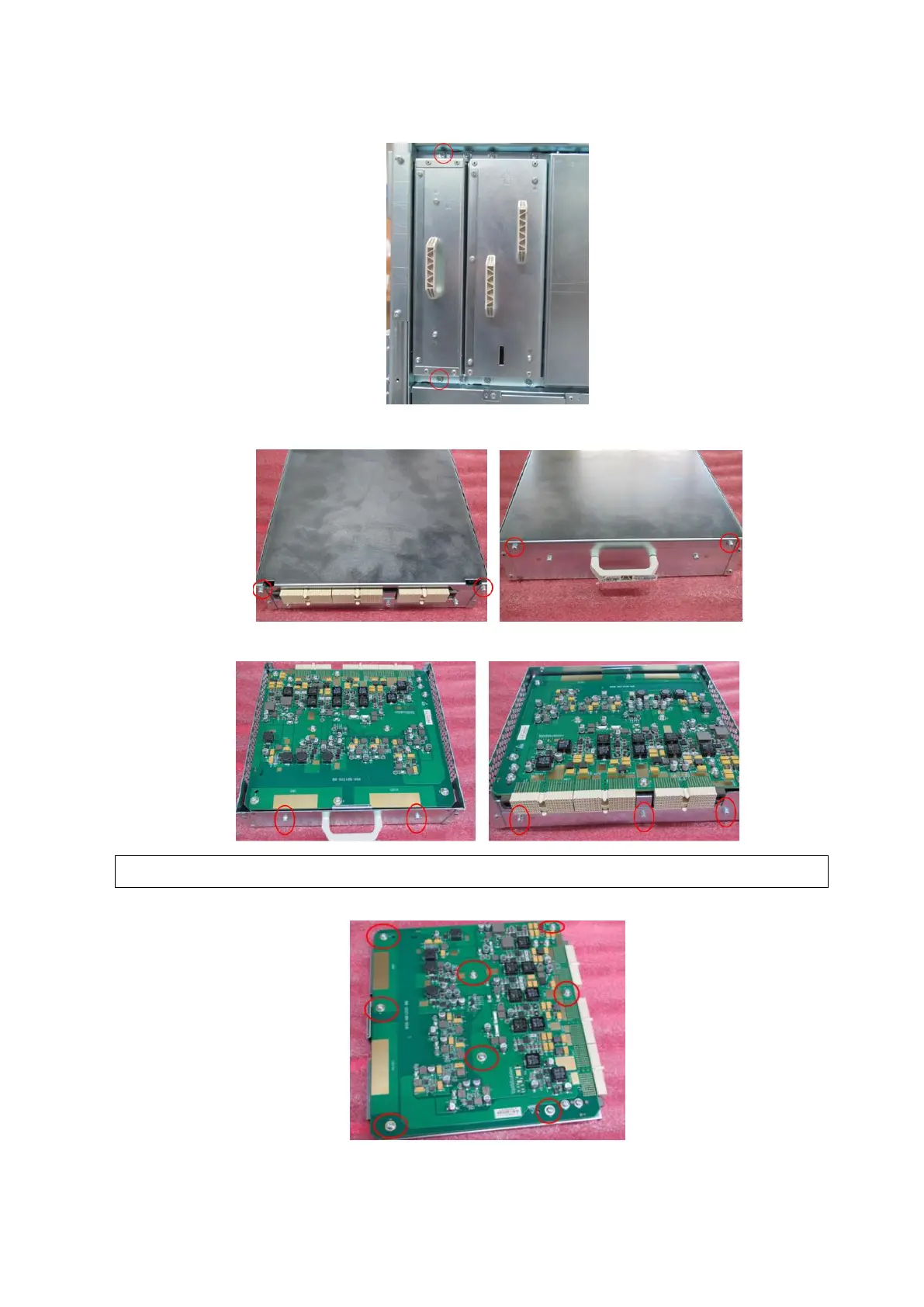

3. Unscrew two M3 X 8 screws on both sides to remove the metal cover.
4. Unscrew five M3 X 8 screws on both sides to remove PCBA bracket assembly.
5. Unscrew eight M3 X 8 screws on metal bracket to remove DC board.
6. Unscrew eight M3 X 8 screws on metal bracket to remove PHV board.
NOTE:
Take notice of the bolts on the socket when installing.
