Mindray DC-80A

To Next Page

To Previous Page

Structure and Assembly/Disassembly 9-33

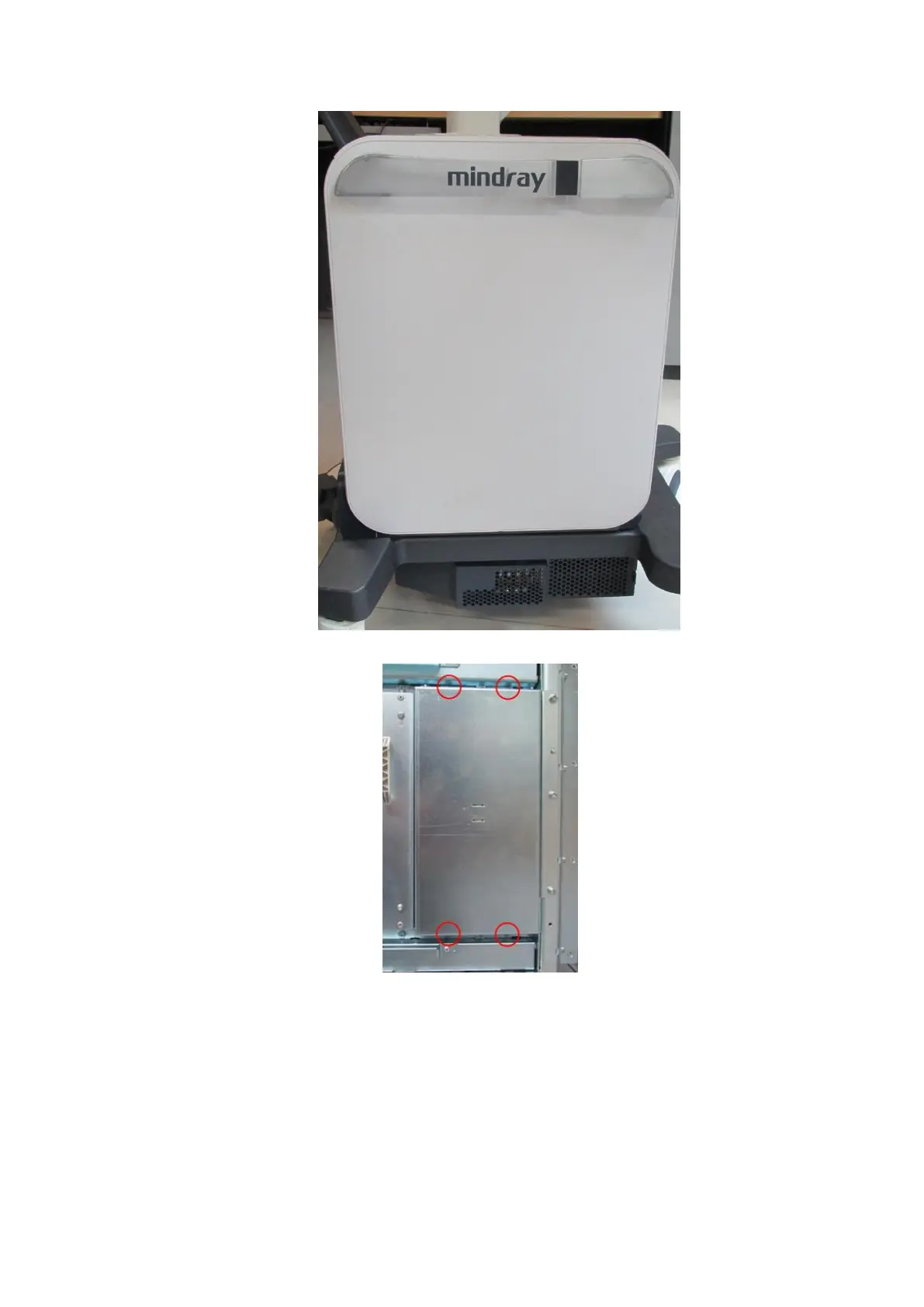

2. Unscrew four M4 X 8 screws to remove the metal cover.

3. And remove engine board as shown in the figure below.
