Mindray DC-80A

Structure and Assembly/Disassembly 9-37

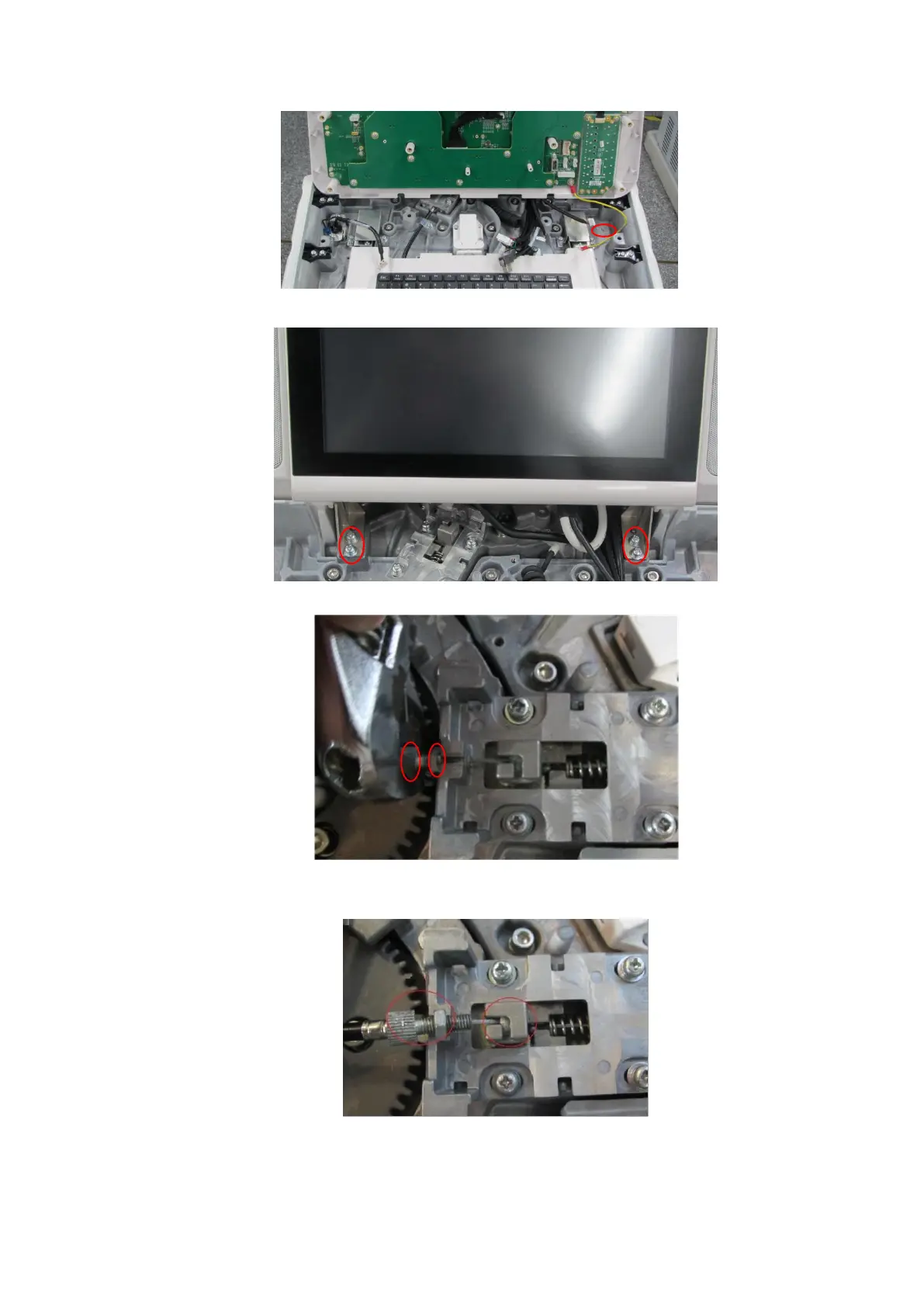

5. Unscrew four M4 X 12 combination screws from the touch screen assembly to remove it.
1. Unfasten the screw, and then remove the bolt. Take the guide cable out of the slot.
Step 1Step 2
2. Disassemble the two parts as shown in the following figure. Take the cylinder-shaped part out of
the dragline. The dragline and the arm fall apart then.
3. Unscrew four M4 X 12 screws around the loudspeaker.
1. Separate the column
2. Take out the column
