Mindray DC-80A Service Manual

Structure and Assembly/Disassembly 9-41
5. Remove two M3 X8 semicircle-shaped cover, remove the cover.

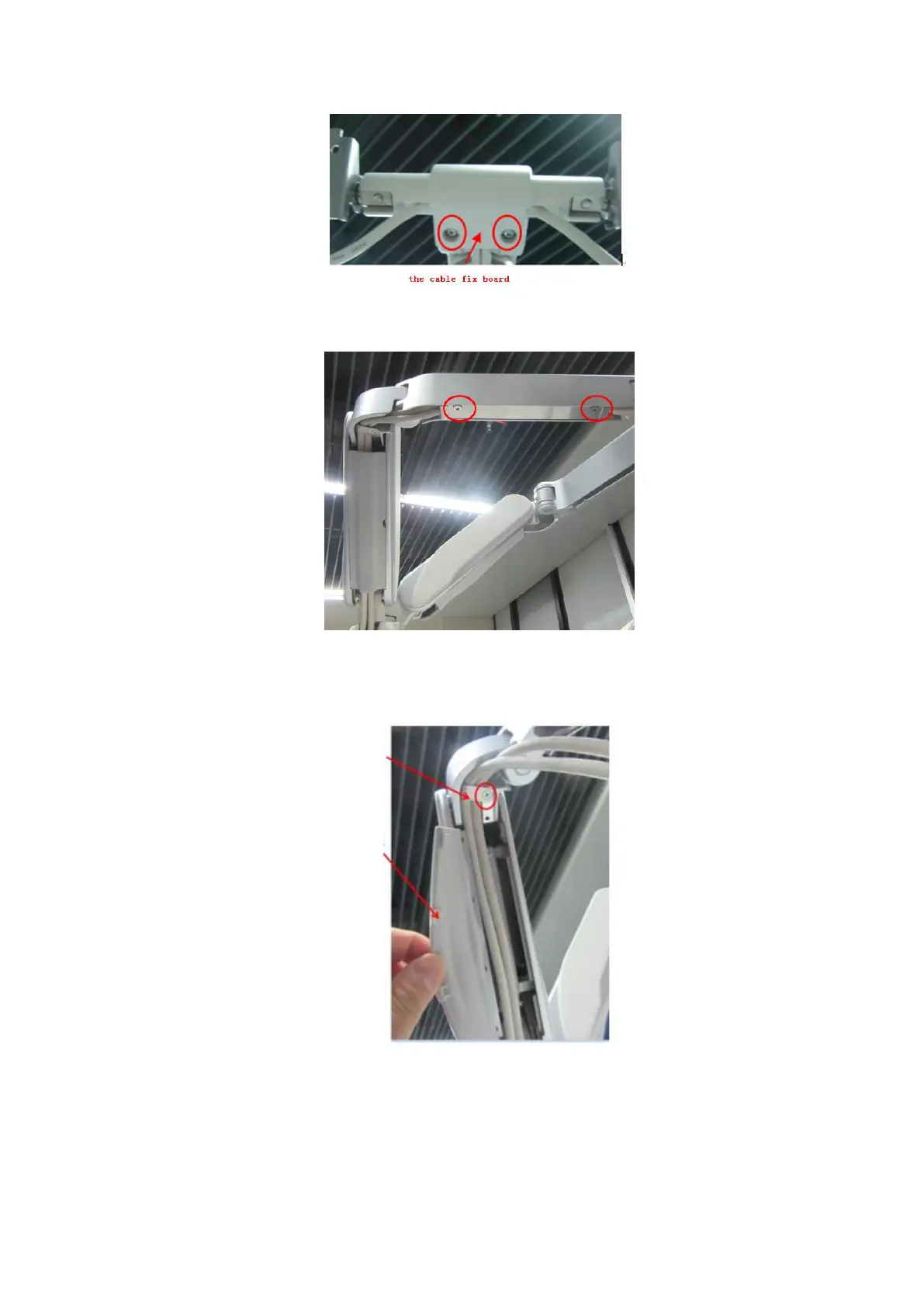

6. Unscrew the M3X8 countersunk screw to remove the pressing line plate, and uncover the
decorative cover as shown in the following figure to take out the signal and power cables of the
display from the supporting arm.
7. Use a flat-headed screwdriver to remove the clasp of the cable protection cover of the display
supporting arm in the direction as shown in the left figure, and remove the display supporting
arm in the direction as shown in the right figure.
Pressing line plate
Decorative cover
