Mindray DC-80A Service Manual

Structure and Assembly/Disassembly 9-51
No.
Device Name
Port
Description

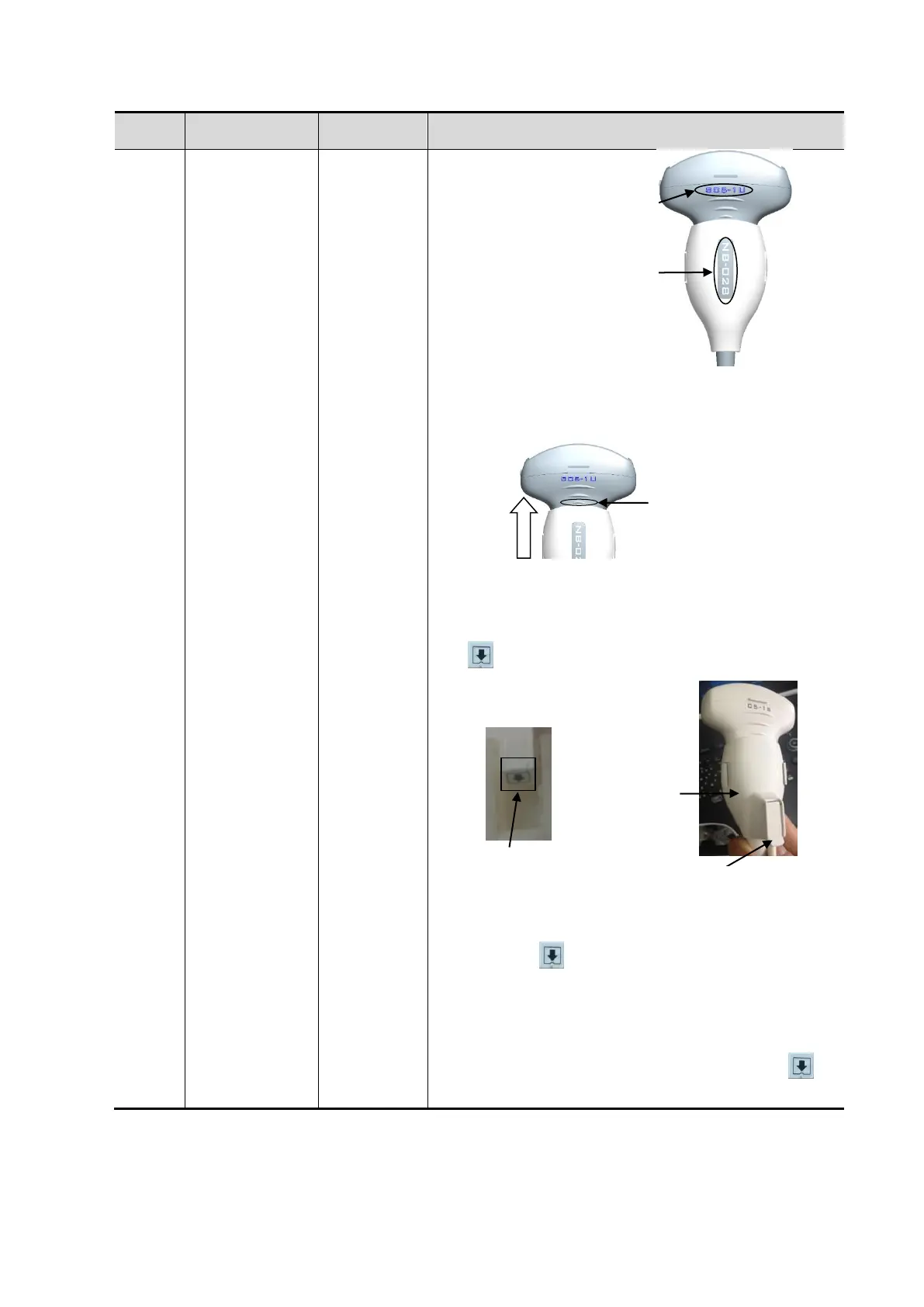

⚫ Push the navigation support fastened following
the arrow’s guide.
3. Positioning (probe) sensor: fix the positioning
(probe) sensor which is already plugged in
positioning (probe) sensor port to the cavity of the
positioning (probe) navigation support following
guide.
Note: if failed to plug the positioning (probe) sensor
following guide, it may lead to non-correlation
of spatial positioning.
4. Motion (abdomen) sensor: fix the motion
(abdomen) sensor which is already plugged in
motion (abdomen) sensor port to the cavity of the
motion (abdomen) sensor support following
guide.
Positioning (probe) sensor
Positioning
(probe)
navigation
support
Face downward
Fastened here
Silk print on the
support
Silk print on the
probe
