Mindray DC-80A

To Next Page

To Previous Page

Optional Installation/Assembly 10-9

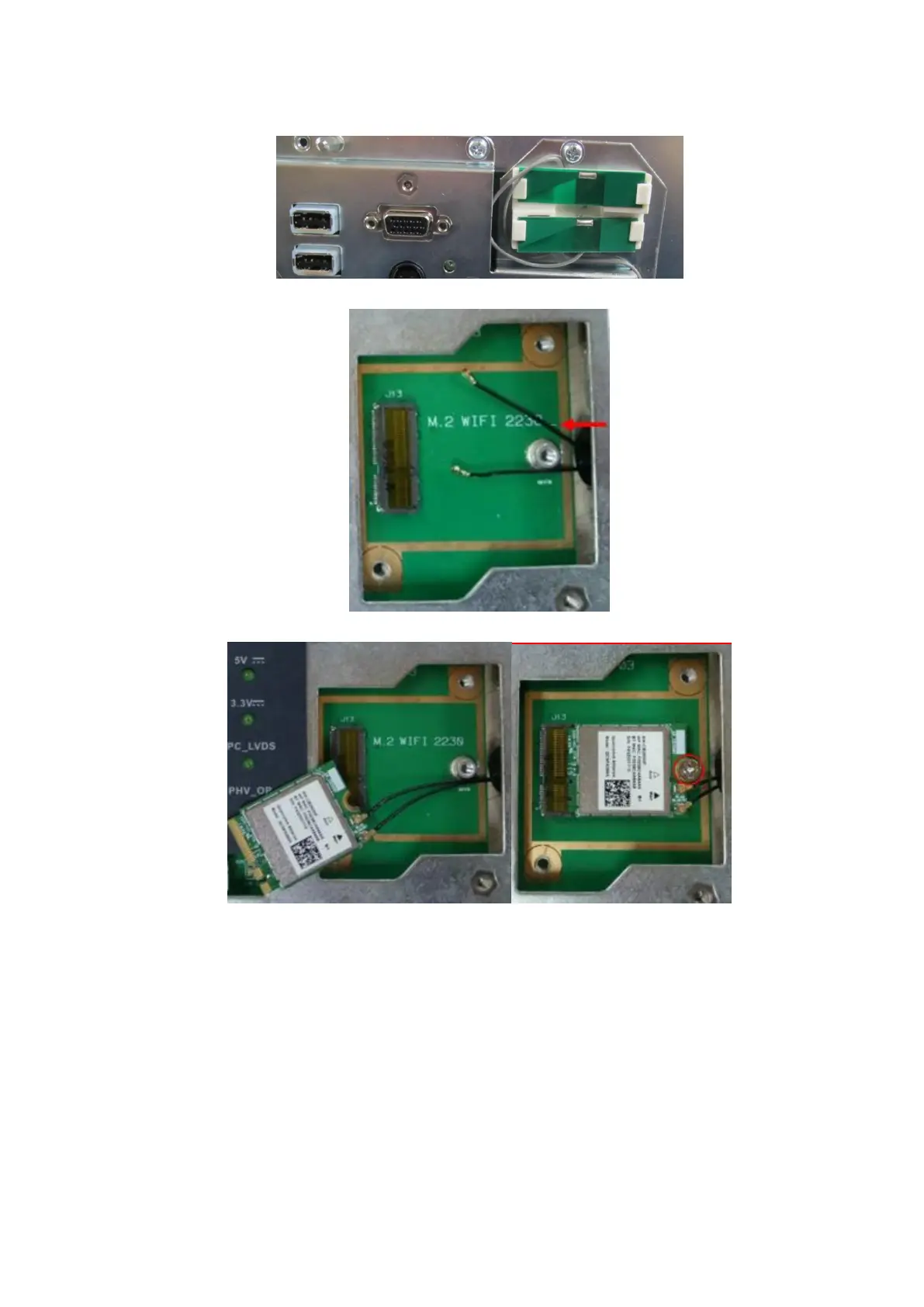

3. Insert WIFI board into the cable bracket.

4. Insert WIFI cable into black hole.

5. Plug WIFI cable into the WIFI board with one screw.

6. Fix the shield with two M3 X 8 screws.
