Image Optimization 5-23

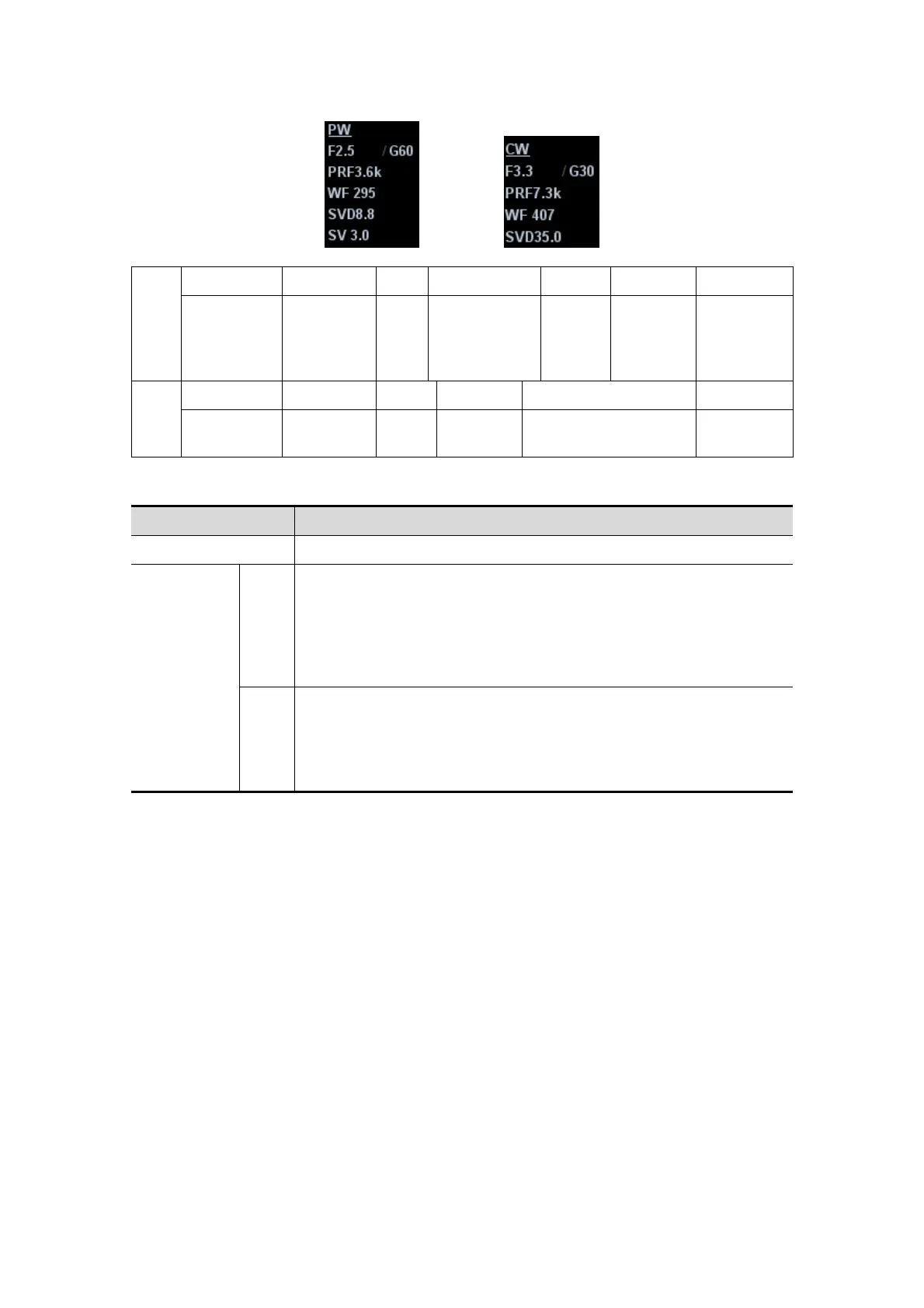

PW Display F 2.5 G 60 PRF 3.6k WF295 SVD 8.8 SV 3.0
Parameters
Frequency Gain Pulse
Repetition
Frequency
PRF
WF
(Wall
Filter)
SV
Position
SV Size
CW Display F 3.3 G 30 WF407 PRF 7.3k SVD 35.0
Parameters
Frequency Gain WF (Wall
Filter)
Pulse Repetition
Frequency PRF
SV
Position
Parameters that can be adjusted to optimize the PW/ CW mode image are indicated in the
following.
Adjustment Items
Control Panel Gain, TGC, Depth
Soft Menu &
Menu
PW
Invert, SV, WF, Frequency, Duplex/Triplex, V Max, V Mean, Audio,
Trace Area, Colorize Map, Speed, Acoustic Power, Trace
Sensitivity, T/F Res, Gray Map, Dynamic Range, Scale, Baseline,
Colorize, Quick Angle, Angle, Trace Smooth, Time Mark, HPRF,
Curve, Gray Rejection, γ, Display Format, Auto Calculation, Auto
Calculation Parameter, PW Steer
CW
WF, Invert, Colorize Map, Frequency, Speed, V Max, V Mean,
Dynamic Range, Audio, Trace Area, Trace Sensitivity, Gray Map,
Scale, Baseline, Colorize, Quick Angle, Angle, Acoustic Power,
Trace Smooth, Time Mark, T/F Res, Curve, Gray Rejection, γ,
Display Format, Auto Calculation, Auto Calculation Parameter
 During PW/ CW mode imaging, menus for B mode and PW/ CW mode are displayed
in the soft menu at the same time, use the left/right keys of soft menu controls <4> to
switch the among menus of B mode and PW/ CW mode.
 In PW/CW mode, acoustic power of the probe is synchronous with that of B mode.
 When you adjust the depth of the B mode image, related changes will occur in
PW/CW Mode image as well.
 Most of the parameters are the same for the PW mode and CW mode, so parameters
of the both are combined together to be introduced here.
 Adjustment items, such as SV, steer, Duplex, Triplex and HPRF, are not available in
the CW mode.
 Items that appear in the menu or the soft menus are dependent upon preset, which
can be changed or set through "[Setup] → [Image Preset]"; please refer to "5.13
Image Preset" for details.
 Press <Update> to switch between the real-time B and freezing B images.
Only phased probes support CW mode.
