13-34 Probes and Biopsy

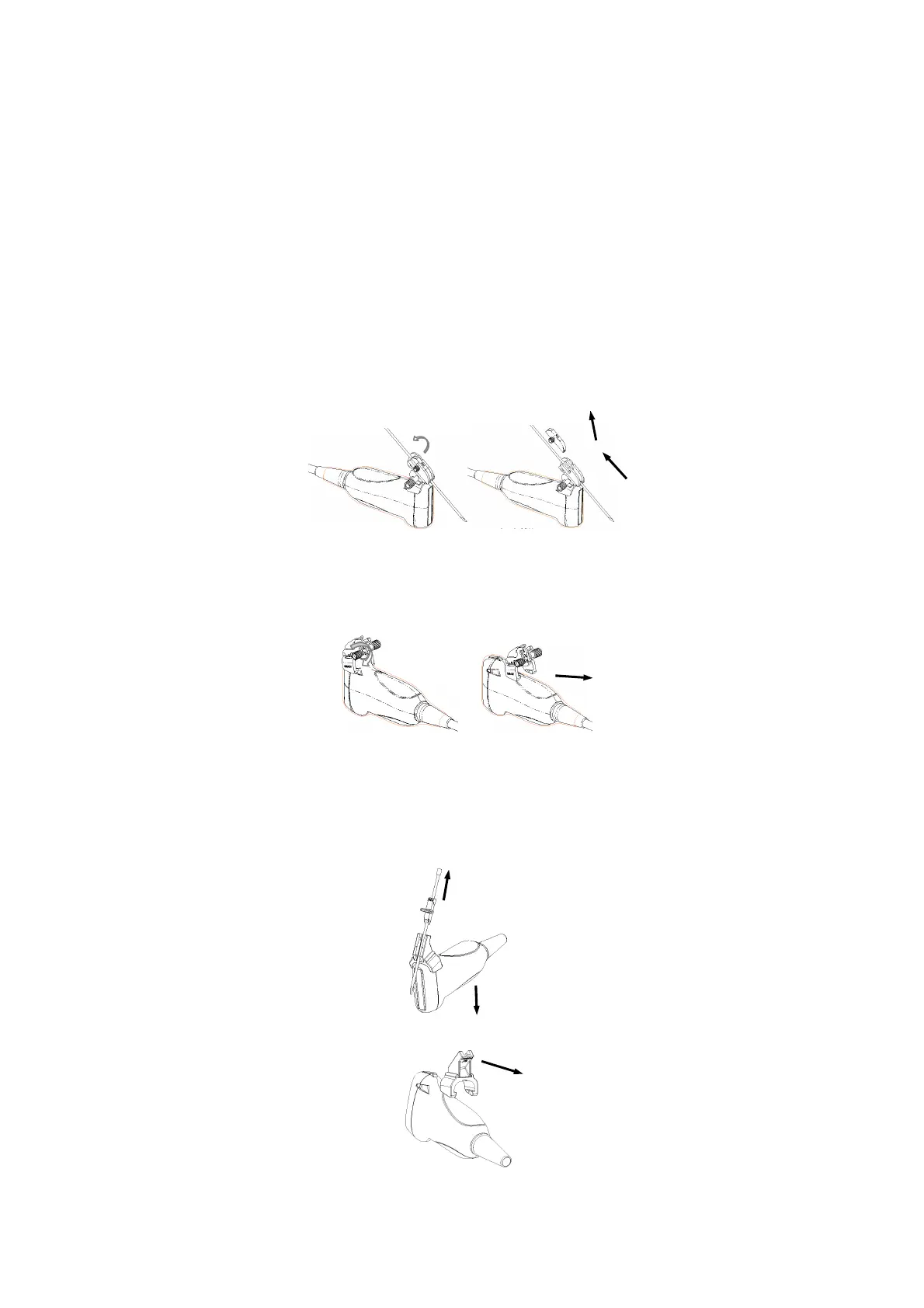

13.2.8 Removing the Needle-guided Bracket
 NGB-004
Hold the probe in the left hand, unscrew the locking nut with the right hand to open the
retaining clamp, and then raise the needle-guided bracket to separate the locating
bulge from the locating grooves.
 NGB-005
Hold the probe and the needle-guided bracket, open the grip knob of the
needle-guided bracket.
 NGB-007
 Metal needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guided bracket and the probe from the
needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the probe.
 Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the
needle.
(3) Remove the support of needle-guided bracket from the probe.
1
2
