Mindray M7 User Manual

13-18 Probes and Biopsy
13.2.2 Needle-guided Brackets
A needle-guided bracket is available for purchase as an optional accessory; it is used in
combination with the probe. Some of the probes have matched needle-guided bracket
and needles. To order needle-guided brackets, contact MINDRAY Customer Service
Department or sales representative.
For biopsy or treatment, ultrasound-guided biopsy procedures can be performed using the
probe in combination with a needle-guided bracket (optional accessory) and a biopsy
needle (provided by the user).
Names of Parts
This section describes the parts and corresponding functions of each needle-guided
bracket.

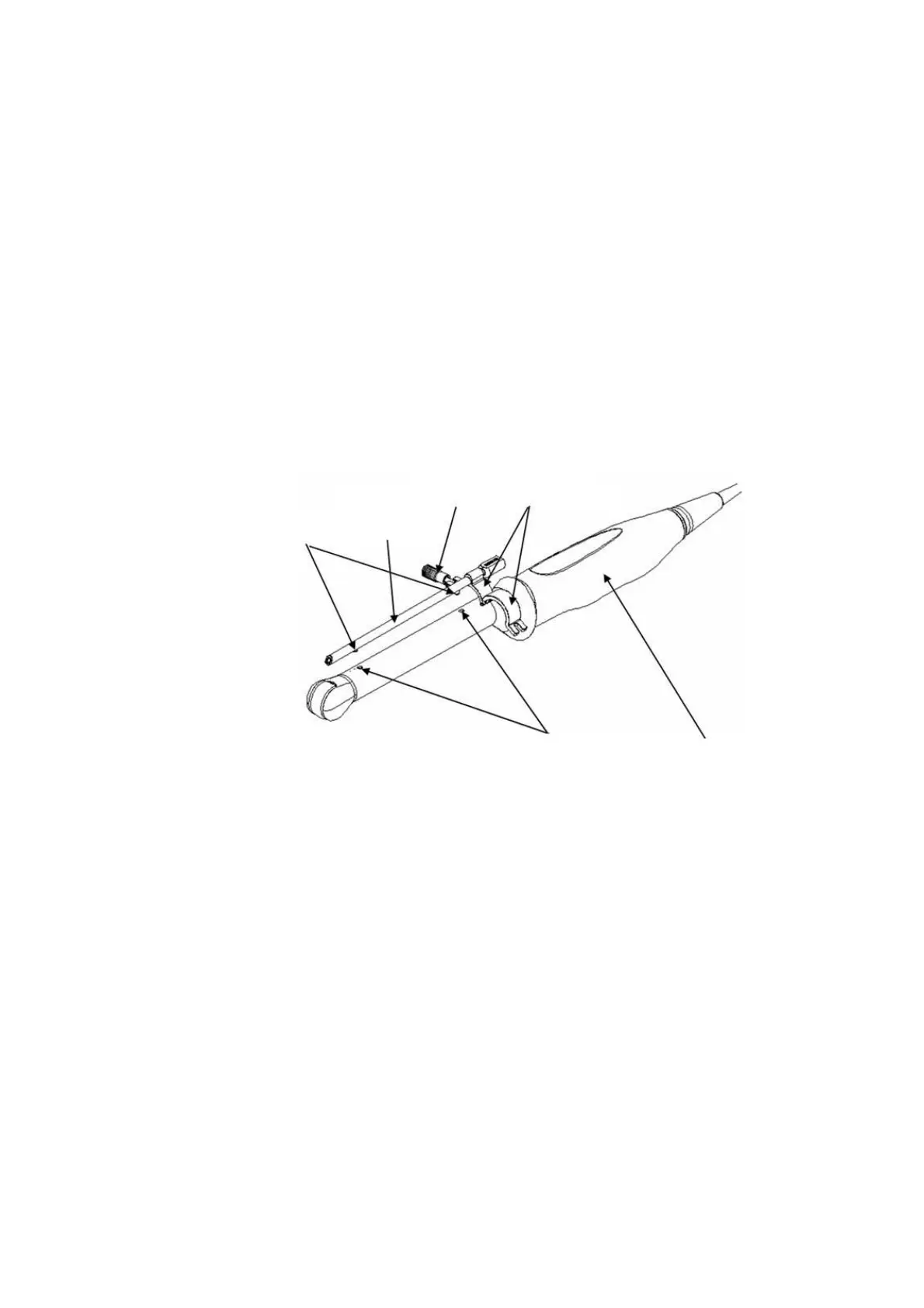

 NGB-004：
Probe
Locating groove
Retaining clamp
Locating bulge
Locking
nut
Needle
guide

Mindray M7 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Imaging Modes	2D, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Cardiac, Vascular, OB/GYN, Small Parts, Musculoskeletal, Urology, Pediatric
Battery	Rechargeable Lithium-ion
Connectivity	USB, Ethernet, DICOM
Dimensions	35 cm x 36 cm x 9 cm
Transducer Ports	2 active transducer ports
